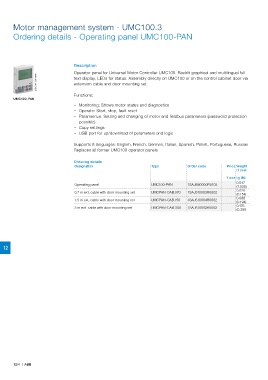

Motor management system - UMC100.3

Ordering details - Operating panel UMC100-PAN

Description
Operator panel for Universal Motor Controller UMC100. Backlit graphical and multilingual full-
2CDC 341 008 V0014 text display, LEDs for status. Assembly directly on UMC100 or on the control cabinet door via
extension cable and door mounting set.

Functions:
UMC100-PAN
– Monitoring: Shows motor status and diagnostics
– Operate: Start, stop, fault reset
– Parametrize: Setting and changing of motor and fieldbus parameters (password protection
possible)
– Copy settings
– USB port for up/download of parameters and logic

Supports 8 languages: English, French, German, Italian, Spanish, Polish, Portuguese, Russian
Replaces all former UMC100 operator panels

Ordering details
Designation Type Order code Price Weight
(1 pce)
1 pce kg (lb)
0.047
Operating panel UMC100-PAN 1SAJ590000R0103
(1.036)
0.070
0.7 m ext. cable with door mounting set UMCPAN-CAB.070 1SAJ510003R0002
(0.154)
0.088
1.5 m ext. cable with door mounting set UMCPAN-CAB.150 1SAJ510004R0002
(0.194)
0.176
3 m ext. cable with door mounting set UMCPAN-CAB.300 1SAJ510002R0002
(0.388
