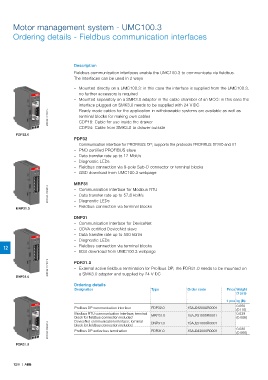

Motor management system - UMC100.3

Ordering details - Fieldbus communication interfaces

Description
Fieldbus communication interfaces enable the UMC100.3 to communicate via fieldbus.
The interfaces can be used in 2 ways

– Mounted directly on a UMC100.3: in this case the interface is supplied from the UMC100.3,
no further accessory is required
– Mounted separately on a SMK3.0 adapter in the cable chamber of an MCC: in this case the
interface plugged on SMK3.0 needs to be supplied with 24 V DC
Ready made cables for the application in withdrawable systems are available as well as
2CDC 341 015 S0014 terminal blocks for making own cables
CDP18: Cable for use inside the drawer
CDP24: Cable from SMK3.0 to drawer outside
PDP32.0
PDP32
– Communication interface for PROFIBUS DP; supports the protocols PROFIBUS DP/V0 and V1
– PNO certified PROFIBUS slave
– Data transfer rate up to 12 Mbit/s
– Diagnostic LEDs
– Fieldbus connection via 9-pole Sub-D connector or terminal blocks
– GSD download from UMC100.3 webpage

MRP31
2CDC 341 016 S0014 – Data transfer rate up to 57,6 kbit/s
– Communication interface for Modbus RTU

– Diagnostic LEDs
– Fieldbus connection via terminal blocks
MRP31.0

DNP31
– Communication interface for DeviceNet
– ODVA certified DeviceNet slave
– Data transfer rate up to 500 kbit/s
– Diagnostic LEDs
12 – Fieldbus connection via terminal blocks
– EDS download from UMC100.3 webpage

2CDC 341 017 S0014 PDR31.0
– External active fieldbus termination for Profibus DP; the PDR31.0 needs to be mounted on
DNP31.0 a SMK3.0 adapter and supplied by 24 V DC
Ordering details
Designation Type Order code Price Weight
(1 pce)
1 pce kg (lb)
0.050
Profibus DP communication interface PDP32.0 1SAJ242000R0001
(0.110)
Modbus RTU communication interface; terminal MRP31.0 1SAJ251000R0001 0.039
block for fieldbus connection included (0.086)
DeviceNet communication interface; terminal DNP31.0 1SAJ231000R0001
2CDC 341 018 S0014 Profibus DP active bus termination PDR31.0 1SAJ243000R0001 0.030
block for fieldbus connection included
(0.066)

PDR31.0
