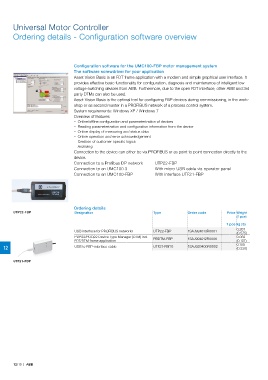

Universal Motor Controller

Ordering details - Configuration software overview

Configuration software for the UMC100-FBP motor management system
The software screwdriver for your application
Asset Vision Basic is an FDT frame application with a modern and simple graphical user interface. It
provides effective basic functionality for configuration, diagnosis and maintenance of intelligent low
voltage switching devices from ABB. Furthermore, due to the open FDT interface, other ABB and 3rd
party DTMs can also be used.
Asset Vision Basic is the optimal tool for configuring FBP devices during commissioning, in the work-
shop or as second master in a PROFIBUS network of a process control system.
System requirements: Windows XP / Windows 7
Overview of features:
– Online/offline configuration and parameterization of devices
– Reading parameterization and configuration information from the device
– Online display of measuring and status data
– Online operation and error acknowledgement
– Creation of customer-specific logics
– Archiving
Connection to the device can either be via PROFIBUS or as point to point connection directly to the
device.
Connection to a Profibus DP network UTP22-FBP
Connection to an UMC100.3 With micro-USB cable via operator panel
Connection to an UMC100-FBP With interface UTF21-FBP

Ordering details
UTP22-FBP Designation Type Order code Price Weight
(1 pce)

1 pce kg (lb)
0.261
USB interface for PROFIBUS networks UTP22-FBP 1SAJ924013R0001
(0.575)
PDP22/PDQ22 Device Type Manager (DTM) incl. PBDTM-FBP 1SAJ924012R0006 0.062
FDT/DTM frame application (0.137)
0.100
12 USB to FBP-interface cable UTF21-FBP.0 1SAJ929400R0002 (0.220)

UTF21-FBP
