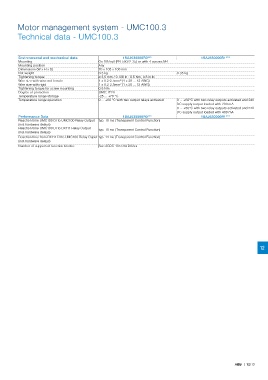

Motor management system - UMC100.3

Technical data - UMC100.3

Environmental and mechanical data 1SAJ530000R0*** 1SAJ530000R1***
Mounting On DIN rail (EN 50022-35) or with 4 screws M4
Mounting position Any
Dimensions (W x H x D) 70 x 105 x 106 mm
Net weight 0.3 kg 0.35 kg
Tightening torque ø 3,5 mm / 0.138 in : 0.5 Nm, 4.5 in.lb
Wire size with wire end ferrule 1 x 0.2-2.5mm² (1 x 28 ... 12 AWG)
Wire size with rigid 1 x 0.2-2.5mm² (1 x 28 ... 12 AWG)
Tightening torque for screw mounting 0.8 Nm
Degree of protection UMC: IP20
Temperature range storage -25 ... +70 °C
Temperature range operation 0 ... +60 °C with two output relays activated 0 ... +60°C with two relay outputs activated and 24V
DC supply output loaded with 200 mA
0 ... +50°C with two relay outputs activated and 24V
DC supply output loaded with 400 mA
Performance Data 1SAJ530000R0*** 1SAJ530000R1***
Reaction time UMC100 DI to UMC100 Relay Output typ. 10 ms (Transparent Control Function)
(incl.hardware delays)
Reaction time UMC100 DI to DX111 Relay Output typ. 10 ms (Transparent Control Function)
(incl.hardware delays)
Reaction time from DX111 DI to UMC100 Relay Ouput typ. 14 ms (Transparent Control Function)
(incl.hardware delays)
Number of supported function blocks: See 2CDC 135 014 D02xx
