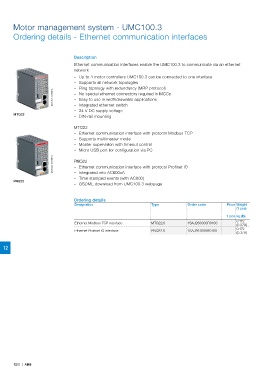

Motor management system - UMC100.3

Ordering details - Ethernet communication interfaces

Description
Ethernet communication interfaces enable the UMC100.3 to communicate via an ethernet
network
– Up to 4 motor controllers UMC100.3 can be connected to one interface
– Supports all network topologies
– Ring topology with redundancy (MRP protocol)
2CDC 341 003 S0012 – No special ethernet connectors required in MCCs
– Easy to use in widthdrawable applications
– Integrated ethernet switch
– 24 V DC supply voltage
MTQ22
– DIN-rail mounting

MTQ22
– Ethernet communication interface with protocol Modbus TCP
– Supports multimaster mode
– Master supervision with timeout control
– Micro USB port for configuration via PC
2CDC 341 001 S0014 PNQ22

– Ethernet communication interface with protocol Profinet IO
– Integrated into AC800xA
– Time stamped events (with AC800)
PNQ22
– GSDML download from UMC100.3 webpage

Ordering details
Designation Type Order code Price Weight
(1 pce)
1 pce kg (lb)
0.172
Ethernet Modbus TCP interface MTQ22.0 1SAJ260000R0100
(0.379)
0.172
Ethernet Profinet IO interface PNQ22.0 1SAJ261000R0100
(0.379)
