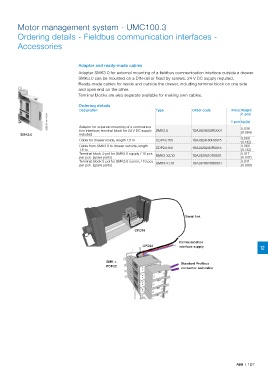

Motor management system - UMC100.3

Ordering details - Fieldbus communication interfaces -
Accessories

Adapter and ready-made cables
Adapter SMK3.0 for external mounting of a fieldbus communication interface outside a drawer.
SMK3.0 can be mounted on a DIN-rail or fixed by screws. 24 V DC supply required.
Ready-made cables for inside and outside the drawer, including terminal block on one side
and open end on the other.
Terminal blocks are also separate available for making own cables.

Ordering details
Designation Type Order code Price Weight
(1 pce)
2CDC 341 014 V0014 Adapter for separate mounting of a communica- 1 pce kg (lb)

(0.084)
included
SMK3.0 tion interface; terminal block for 24 V DC supply SMK3.0 1SAJ929600R0001 0.038
0.060
Cable for drawer inside, length 1.5 m CDP18.150 1SAJ929180R0015
(0.132)
Cable from SMK3.0 to drawer outside, length CDP24.150 1SAJ929240R0015 0.060
1.5 m (0.132)
Terminal block 2-pol for SMK3.0 supply / 10 pcs SMK3-X2.10 1SAJ929610R0001 0.017
per pck. (spare parts) (0.037)
Terminal block 5-pol for SMK3.0 comm. / 10 pcs SMK3-X1.10 1SAJ929620R0001 0.041
per pck. (spare parts) (0.090)

Serial link

CPD18

Communication
CPD24 interface supply 12

SMK + Standard Profibus
PDP32
connector and cable

ABB | 12/7
