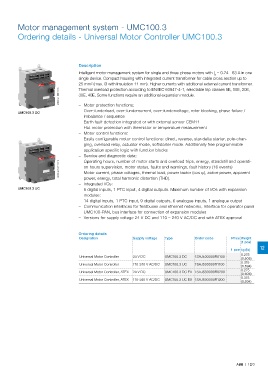

Motor management system - UMC100.3

Ordering details - Universal Motor Controller UMC100.3

Description
Intelligent motor management system for single and three-phase motors with I = 0.24 - 63 A in one
e
single device. Compact housing with integrated current transformer for cable cross section up to
25 mm² (max. Ø with Insulation 11 mm). Higher currents with additional external current transformer.
Thermal overload protection according to EN/IEC 60947-4-1, selectable trip classes 5E, 10E, 20E,
2CDC 341 006 V0014 30E, 40E. Some functions require an additional expansion module.

– Motor protection functions:
Over-/underload, over-/undercurrent, over-/undervoltage, rotor blocking, phase failure /
UMC100.3 DC
imbalance / sequence
Earth fault detection integrated or with external sensor CEM11
Hot motor protection with thermistor or temperature measurement
– Motor control functions:
Easily configurable motor control functions: direct, reverse, star-delta starter, pole-chan-
ging, overload relay, actuator mode, softstarter mode. Additionally free programmable
application specific logic with function blocks
– Service and diagnostic data:
Operating hours, number of motor starts and overload trips, energy, standstill and operati-
2CDC 341 007 V0014 on hours supervision, motor status, faults and warnings, fault history (16 events)
Motor current, phase voltages, thermal load, power factor (cos ϕ), active power, apparent
power, energy, total harmonic distortion (THD).
– Integrated I/Os:
UMC100.3 UC 6 digital inputs, 1 PTC input, 4 digital outputs. Maximum number of I/Os with expansion
modules:
14 digital inputs, 1 PTC input, 9 digital outputs, 6 analogue inputs, 1 analogue output
– Communication interfaces for fieldbuses and ethernet networks, Interface for operator panel
UMC100-PAN, bus interface for connection of expansion modules
– Versions for supply voltage 24 V DC and 110 – 240 V AC/DC and with ATEX approval

Ordering details
Designation Supply voltage Type Order code Price Weight
(1 pce)
12
1 pce kg (lb)
0.275
Universal Motor Controller 24 V DC UMC100.3 DC 1SAJ530000R0100
(0.606)
0.315
Universal Motor Controller 110-240 V AC/DC UMC100.3 UC 1SAJ530000R1100
(0.694)
0.275
Universal Motor Controller, ATEX 24 V DC UMC100.3 DC EX 1SAJ530000R0200
(0.606)
0.315
Universal Motor Controller, ATEX 110-240 V AC/DC UMC100.3 UC EX 1SAJ530000R1200
(0.694)
