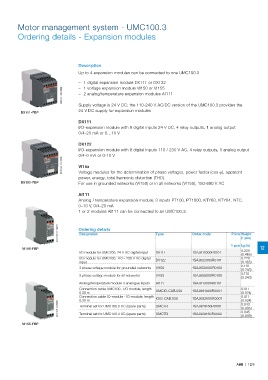

Page 809 - Motor_protection_and_control_Manual_motor_starters_ contactors

Motor management system - UMC100.3

Ordering details - Expansion modules

Description
Up to 4 expansion-modules can be connected to one UMC100.3
– 1 digital expansion module DX111 or DX122
– 1 voltage expansion module VI150 or VI155
2CDC 341 005 F0009 – 2 analog/temperature expansion modules AI111

Supply voltage is 24 V DC; the 110-240 V AC/DC version of the UMC100.3 provides the
24 V DC supply for expansion modules
DX111-FBP
DX111
I/O-expansion module with 8 digital inputs 24 V DC, 4 relay outputs, 1 analog output
0/4-20 mA or 0…10 V

DX122
I/O-expansion module with 8 digital inputs 110 / 230 V AC, 4 relay outputs, 1 analog output
0/4-0 mA or 0-10 V
2CDC 341 004 F0009 VI15x

Voltage modules for the determination of phase voltages, power factor (cos ϕ), apparent
power, energy, total harmonic distortion (THD).
DX122-FBP For use in grounded networks (VI150) or in all networks (VI155), 150-690 V AC

AI111
Analog / temperature expansion module, 3 inputs PT100, PT1000, KTY83, KTY84, NTC,
0–10 V, 0/4-20 mA
1 or 2 modules AI111 can be connected to an UMC100.3.

2CDC 345 001 S0011 Ordering details Type Order code Price Weight
Designation
(1 pce)
1 pce kg (lb)
VI150-FBP 0.220 12
I/O module for UMC100, 24 V DC digital input DX111 1SAJ611000R0101
(0.485)
I/O module for UMC100, 110 – 230 V AC digital 0.220
input DX122 1SAJ622000R0101 (0.485)
0.110
3 phase voltage module for grounded networks VI150 1SAJ650000R0100
(0.243)
0.110
3 phase voltage module for all networks VI155 1SAJ655000R0100
(0.243)
Analog/temperature module 3 analogue inputs AI111 1SAJ613000R0101
Connection cable UMC100 - I/O module, length 0.011
0.30 m UMCIO-CAB.030 1SAJ691000R0001 (0.024)
Connection cable IO-module - IO-module, length IOIO-CAB.030 1SAJ692000R0001 0.011
0,30 m
(0.024)
2CDC 345 002 S0011 Terminal set for UMC100.3 DC (spare parts) UMCTB 1SAJ929160R0001 0.043
(0.095)
0.045
UMCTB
Terminal set for UMC100.3 UC (spare parts)
1SAJ929160R0002
(0.099)
VI155-FBP
