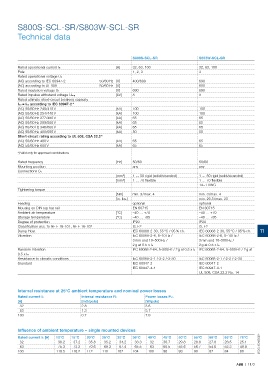

S800S-SCL-SR/S803W-SCL-SR

Technical data

S800S-SCL-SR S803W-SCL-SR
Rated operational current Ie [A] 32, 63, 100 32, 63, 100
Pole 1, 2, 3 3
Rated operational voltage Ue
(AC) according to IEC 60947-2 50/60 Hz [V] 400/690 690
(AC) according to UL 508 50/60 Hz [V] 600
Rated insulation voltage Ui [V] 690 690
Rated impulse withstand voltage Uimp [kV] 8 8
Rated ultimate short-circuit breaking capacity
Icu = Ics according to IEC 60947-2 *
(AC) 50/60 Hz 240/415 V [kA] 100 100
(AC) 50/60 Hz 254/440 V [kA] 100 100
(AC) 50/60 Hz 277/480 V [kA] 65 65
(AC) 50/60 Hz 289/500 V [kA] 65 65
(AC) 50/60 Hz 346/600 V [kA] 65 65
(AC) 50/60 Hz 400/690 V [kA] 50 50
Short-circuit rating according to UL 508, CSA 22.2 *
(AC) 50/60 Hz 480 V [kA] 65 65
(AC) 50/60 Hz 600 V [kA] 65 65
*) Valid only for approved combinations
Rated frequency [Hz] 50/60 50/60
Mounting position any any
Connections Cu
2
[mm ] 1 … 50 rigid (solid/stranded) 1 … 50 rigid (solid/stranded)
2
[mm ] 1 … 70 flexible 1 … 70 flexible
14–1 AWG
Tightening torque
[Nm] min. 3 / max. 4 min. 3 / max. 4
[in. lbs.] min. 26.5 / max. 25
Feeding optional optional
Mouting on DIN top hat rail EN 60715 EN 60715
Ambient air temperature [°C] –40 … +70 –40 … +70
Storage temperature [°C] –40 … +85 –40 … +85
Degree of protection IP20 IP20
Classification acc. to NF F 16-101, NF F 16-102 I3, F2 I3, F2
Damp Heat IEC 60068-2-30, 55 °C / 95 % r.h. IEC 60068-2-30, 55 °C / 95 % r.h. 11
Vibration IEC 60068-2-6, 5–10 Hz / IEC 60068-2-6, 5–10 Hz /
3 mm and 10–500 Hz / 3 mm and 10–500 Hz /
2 g at 0.5 x Ie 2 g at 0.5 x Ie
Random Vibration IEC 60068-2-64, 5–500 Hz / 2 g at 0.5 x Ie IEC 60068-2-64, 5–500 Hz / 2 g at
0.5 x Ie
Resistance to climatic conditions IEC 60068-2-1 /-2-2 /-2-30 IEC 60068-2-1 /-2-2 /-2-30
Standard IEC 60947-2 IEC 60947-2
IEC 60947-4-1 IEC 60947-4-1
UL 508, CSA 22.2 No. 14

Internal resistance at 25°C ambient temperature and nominal power losses
Rated current In Internal resistance Ri Power losses Pvn
[A] [mΩ/pole] [W/pole]
32 2.8 3.6
63 1.3 5.7
100 0.7 7.8

Influence of ambient temperature – single mounted devices
Rated current In [A] 10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C 65°C 70°C
32 38.2 37.2 35.8 35.2 34.2 33.3 32 30.7 29.8 28.8 27.8 26.5 25.1 2CCC413012B0201
63 75.3 73.2 70.6 69.3 67.4 65.5 63 60.5 58.6 56.7 54.8 52.3 49.8
100 119.5 116.2 112 110 107 104 100 96 93 90 87 84 80
