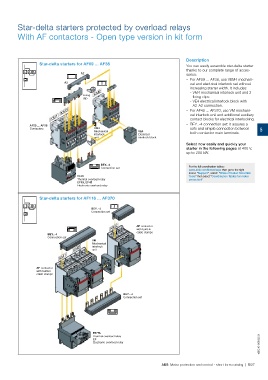

Star-delta starters protected by overload relays

With AF contactors - Open type version in kit form

Description
Star-delta starters for AF09 ... AF38 You can easily assemble star-delta starter
thanks to our complete range of acces-
L Y A2 sories:
– For AF09 ... AF38, use VEM4 mechani-
A2 cal and electrical interlock set without
increasing starter width. It includes:
KM2 - VM4 mechanical interlock unit and 2
Fixing fixing clips
clip
- VE4 electrical interlock block with
A2-A2 connection.
KM3 – For AF40 ... AF370, use VM mechani-
KM1 cal interlock unit and additional auxiliary
contact blocks for electrical interlocking.
– BEY..-4 connection set: it assures a
AF09 ... AF38
Contactors VM4 safe and simple connection between 5
Mechanical VE4
interlock Electrical both contactor main terminals.
unit interlock block
Select now easily and quickly your
starter in the following pages at 400 V,
up to 200 kW.

BEY..-4
Connection set For the full coordination tables:
www.abb.com/lowvoltage then go to the right
menu: "Support", select: "Online Product Selection
TF42 Tools" then select "Coordination Tables for motor
Thermal overload relay protection"
EF19, EF45
Electronic overload relay
Star-delta starters for AF116 ... AF370

L Y
BEY..-4
Connection set

KM2 AF contactor
with built-in
cable clamps
BEY..-4
Connection set
VM
Mechanical
KM3 interlock
unit
KM1

AF contactor
with built-in
cable clamps

BEY..-4
Connection set

TF/TA
1SBC101956S0201
Thermal overload relay
EF
Electronic overload relay

ABB Motor protection and control - short form catalog | 5/27
