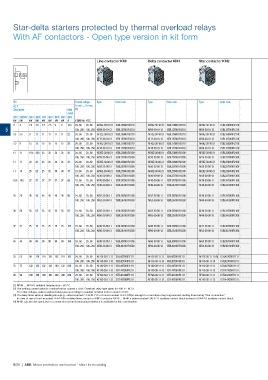

Star-delta starters protected by thermal overload relays

With AF contactors - Open type version in kit form

Line contactor KM1 Delta contactor KM3 Star contactor KM2 Thermal overload relays (2) Electronic timers (3) Accessories
Auxiliary contact blocks
Connection
L Y sets
BEY..-4
Mechanical
CT-ERS TEF4-ON
and electrical CA4
interlock sets
VEM4
IEC Control voltage Type Order code Type Order code Type Order code Setting Type Order code Type Order code Type Order code Type Order code
AC-3 Uc min. ... Uc max. ranges
Rated power Rated (1)
current
220 V 230/240 V 380 V 400 V 415 V 440 V 500 V 690 V 400 V
kW kW kW kW kW kW kW kW A V 50/60 Hz V DC A
4 4 7.5 7.5 7.5 7.5 9 9 15.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 AF09Z-30-10-21 1SBL136001R2110 AF09Z-30-10-21 1SBL136001R2110 7.60...10.0 TF42-10 1SAZ721201R1043 CT-ERS.21S 1SVR730100R0300 BEY16-4 1SBN081313R2000 - -
5 100...250 100...250 AF09-30-10-13 1SBL137001R1310 AF09-30-10-13 1SBL137001R1310 AF09-30-10-13 1SBL137001R1310 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000
5.5 5.5 9 11 11 11 11 11 22 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 AF12Z-30-10-21 1SBL156001R2110 AF09Z-30-10-21 1SBL136001R2110 10.0...13.0 TF42-13 1SAZ721201R1045 CT-ERS.21S 1SVR730100R0300 BEY16-4 1SBN081313R2000 - -
100...250 100...250 AF12-30-10-13 1SBL157001R1310 AF12-30-10-13 1SBL157001R1310 AF09-30-10-13 1SBL137001R1310 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000
7.5 9 15 15 15 15 15 15 29 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 AF16Z-30-10-21 1SBL176001R2110 AF09Z-30-10-21 1SBL136001R2110 16.0...20.0 TF42-20 1SAZ721201R1049 CT-ERS.21S 1SVR730100R0300 BEY16-4 1SBN081313R2000 - -
100...250 100...250 AF16-30-10-13 1SBL177001R1310 AF16-30-10-13 1SBL177001R1310 AF09-30-10-13 1SBL137001R1310 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000
11 11 18.5 18.5 25 25 25 25 35 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 AF26Z-30-00-21 1SBL236001R2100 AF26Z-30-00-21 1SBL236001R2100 20.0...24.0 TF42-24 1SAZ721201R1051 CT-ERS.21S 1SVR730100R0300 BEY38-4 1SBN082713R2000 KM1 : 1 x CA4-10 1SBN010110R1010
100...250 100...250 AF26-30-00-13 1SBL237001R1300 AF26-30-00-13 1SBL237001R1300 AF26-30-00-13 1SBL237001R1300 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000 KM2 : 1 x CA4-10 1SBN010110R1010
11 11 22 22 25 25 25 25 41 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 AF26Z-30-00-21 1SBL236001R2100 AF26Z-30-00-21 1SBL236001R2100 20.0...24.0 TF42-24 1SAZ721201R1051 CT-ERS.21S 1SVR730100R0300 BEY38-4 1SBN082713R2000 KM1 : 1 x CA4-10 1SBN010110R1010
100...250 100...250 AF26-30-00-13 1SBL237001R1300 AF26-30-00-13 1SBL237001R1300 AF26-30-00-13 1SBL237001R1300 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000 KM2 : 1 x CA4-10 1SBN010110R1010
11 15 25 25 25 25 30 30 47 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 AF30Z-30-00-21 1SBL276001R2100 AF26Z-30-00-21 1SBL236001R2100 24.0...29.0 TF42-29 1SAZ721201R1052 CT-ERS.21S 1SVR730100R0300 BEY38-4 1SBN082713R2000 KM1 : 1 x CA4-10 1SBN010110R1010
100...250 100...250 AF30-30-00-13 1SBL277001R1300 AF30-30-00-13 1SBL277001R1300 AF26-30-00-13 1SBL237001R1300 or TEF4-ON 1SBN020112R1000 + VEM4 1SBN030111R1000 KM2 : 1 x CA4-10 1SBN010110R1010
18.5 18.5 37 37 37 37 37 37 66 24...60 20...60 AF40-30-00-11 1SBL347001R1100 AF40-30-00-11 1SBL347001R1100 AF40-30-00-11 1SBL347001R1100 30.0...40.0 TF65-40 1SAZ811201R1003 CT-ERS.21S 1SVR730100R0300 BEY65-4 1SBN083413R2000 KM1 : 1 x CA4-10 (3) 1SBN010110R1010
100...250 100...250 AF40-30-00-13 1SBL347001R1300 AF40-30-00-13 1SBL347001R1300 AF40-30-00-13 1SBL347001R1300 or TEF4-ON 1SBN020112R1000 + VM96-4 1SBN033405T1000 KM2 : 1 x CA4-10 1SBN010110R1010
1 x CA4-01 1SBN010110R1001
KM3 : 1 x CA4-01 1SBN010110R1001
25 25 45 45 45 45 45 45 80 24...60 20...60 AF52-30-00-11 1SBL367001R1100 AF52-30-00-11 1SBL367001R1100 AF40-30-00-11 1SBL347001R1100 36.0...47.0 TF65-47 1SAZ811201R1004 CT-ERS.21S 1SVR730100R0300 BEY65-4 1SBN083413R2000 KM1 : 1 x CA4-10 (3) 1SBN010110R1010
100...250 100...250 AF52-30-00-13 1SBL367001R1300 AF52-30-00-13 1SBL367001R1300 AF40-30-00-13 1SBL347001R1300 or TEF4-ON 1SBN020112R1000 + VM96-4 1SBN033405T1000 KM2 : 1 x CA4-10 1SBN010110R1010
1 x CA4-01 1SBN010110R1001
KM3 : 1 x CA4-01 1SBN010110R1001
30 30 55 55 55 55 55 55 97 24...60 20...60 AF65-30-00-11 1SBL387001R1100 AF65-30-00-11 1SBL387001R1100 AF40-30-00-11 1SBL347001R1100 50.0...60.0 TF65-60 1SAZ811201R1006 CT-ERS.21S 1SVR730100R0300 BEY65-4 1SBN083413R2000 KM1 : 1 x CA4-10 (3) 1SBN010110R1010
100...250 100...250 AF65-30-00-13 1SBL387001R1300 AF65-30-00-13 1SBL387001R1300 AF40-30-00-13 1SBL347001R1300 or TEF4-ON 1SBN020112R1000 + VM96-4 1SBN033405T1000 KM2 : 1 x CA4-10 1SBN010110R1010
1 x CA4-01 1SBN010110R1001
KM3 : 1 x CA4-01 1SBN010110R1001
37 37 75 75 75 75 75 75 132 24...60 20...60 AF80-30-00-11 1SBL397001R1100 AF80-30-00-11 1SBL397001R1100 AF52-30-00-11 1SBL367001R1100 65.0...78.0 TF96-78 1SAZ911201R1004 CT-ERS.21S 1SVR730100R0300 BEY96-4 1SBN083913R2000 KM1 : 1 x CA4-10 (3) 1SBN010110R1010
100...250 100...250 AF80-30-00-13 1SBL397001R1300 AF80-30-00-13 1SBL397001R1300 AF52-30-00-13 1SBL367001R1300 or TEF4-ON 1SBN020112R1000 + VM96-4 1SBN033405T1000 KM2 : 1 x CA4-10 1SBN010110R1010
1 x CA4-01 1SBN010110R1001
KM3 : 1 x CA4-01 1SBN010110R1001
45 45 90 90 90 90 90 90 160 24...60 20...60 AF96-30-00-11 1SBL407001R1100 AF96-30-00-11 1SBL407001R1100 AF65-30-00-11 1SBL387001R1100 84.0...96.0 TF96-96 1SAZ911201R1006 CT-ERS.21S 1SVR730100R0300 BEY96-4 1SBN083913R2000 KM1 : 1 x CA4-10 (3) 1SBN010110R1010
100...250 100...250 AF96-30-00-13 1SBL407001R1300 AF96-30-00-13 1SBL407001R1300 AF65-30-00-13 1SBL387001R1300 or TEF4-ON 1SBN020112R1000 + VM96-4 1SBN033405T1000 KM2 : 1 x CA4-10 1SBN010110R1010
1 x CA4-01 1SBN010110R1001
KM3 : 1 x CA4-01 1SBN010110R1001
55 55 90 110 110 132 132 110 195 24...60 20...60 AF116-30-11-11 1SFL427001R1111 AF116-30-11-11 1SFL427001R1111 AF116-30-11-11 (4) 1SFL427001R1111 100...135 TF140DU-135 1SAZ431201R1003 CT-ERS.21S 1SVR730100R0300 BEY140-4 1SFN084413R1000 - -
100...250 100...250 AF116-30-11-13 1SFL427001R1311 AF116-30-11-13 1SFL427001R1311 AF116-30-11-13 1SFL427001R1311 + VM19 1SFN030300R1000
75 75 132 132 132 132 160 132 230 24...60 20...60 AF140-30-11-11 1SFL447001R1111 AF140-30-11-11 1SFL447001R1111 AF116-30-11-11 1SFL427001R1111 100...135 TF140DU-135 1SAZ431201R1003 CT-ERS.21S 1SVR730100R0300 BEY140-4 1SFN084413R1000 - -
100...250 100...250 AF140-30-11-13 1SFL447001R1311 AF140-30-11-13 1SFL447001R1311 AF116-30-11-13 1SFL427001R1311 + VM19 1SFN030300R1000
90 90 160 160 160 160 200 200 280 24...60 20...60 AF190-30-11-11 1SFL487002R1111 AF190-30-11-11 1SFL487002R1111 AF140-30-11-11 1SFL447001R1111 130...175 TA200DU-175 1SAZ421201R1005 CT-ERS.21S 1SVR730100R0300 BEY190-4 1SFN084813R1000 - -
100...250 100...250 AF190-30-11-13 1SFL487002R1311 AF190-30-11-13 1SFL487002R1311 AF140-30-11-13 1SFL447001R1311 + VM140/190 1SFN034403R1000
(1) AF09 ... AF190: ambient temperature ≤ 60 °C.
(2) The setting current value is: nominal motor current x 0.58. Overload relay type given for 400 V - AC-3.
For other voltage, select overload relay type according to required nominal motor current x 0.58.
(3) On-delay timer without dwelling-time (e.g.: side-mounted CT-ERS.21S or front-mounted TEF4-ON) is enough to countdown the programmed starting time during "Star connection".
In case of use of front-mounted TEF4-ON on-delay timer, mount on KM1 contactor AF26 ... AF96 a side-mounted CAL4-11 auxiliary contact block instead of CA4-10 auxiliary contact block.
(4) AF80 can also be used, but no connection set and mechanical interlock is available for this combination.
