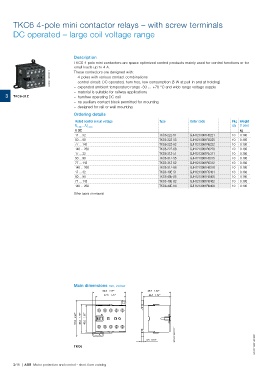

TKC6 4-pole mini contactor relays – with screw terminals
DC operated – large coil voltage range

Description
TKC6 4-pole mini contactors are space optimized control products mainly used for control functions or for
small loads up to 4 A.
These contactors are designed with:
2CDC211021F0011 – 4-poles with various contact combinations
– control circuit: DC operated, hum free, low consumption (5 W at pull-in and at holding)
– expanded ambient temperature range -30 … +70 °C and wide range voltage supply
– material is suitable for railway applications
3 TKC6-31Z – humfree operating DC coil
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C min ... U C max qty (1 pce)
V DC kg
17 ... 32 TKC6-22Z-51 GJH1213061R5221 10 0.180
50 ... 90 TKC6-22Z-55 GJH1213061R5225 10 0.180
77 ... 143 TKC6-22Z-62 GJH1213061R6222 10 0.180
140 ... 260 TKC6-22Z-68 GJH1213061R6228 10 0.180
17 ... 32 TKC6-31Z-51 GJH1213061R5311 10 0.180
50 ... 90 TKC6-31Z-55 GJH1213061R5315 10 0.180
77 ... 143 TKC6-31Z-62 GJH1213061R6312 10 0.180
140 ... 260 TKC6-31Z-68 GJH1213061R6318 10 0.180
17 ... 32 TKC6-40E-51 GJH1213061R5401 10 0.180
50 ... 90 TKC6-40E-55 GJH1213061R5405 10 0.180
77 ... 143 TKC6-40E-62 GJH1213061R6402 10 0.180
140 ... 260 TKC6-40E-68 GJH1213061R6408 10 0.180
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18"
TKC6 2CDC102014C0201
