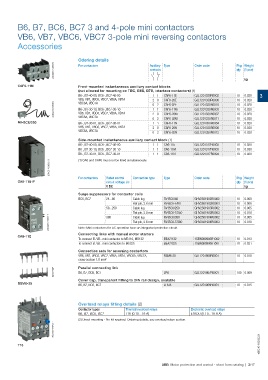

B6, B7, BC6, BC7 3 and 4-pole mini contactors

VB6, VB7, VBC6, VBC7 3-pole mini reversing contactors
Accessories

Odering details
2CDC211012S0010 For contactors Auxiliary Type Order code Pkg Weight
(1 pce)
contacts
qty
kg
CAF6-11N Front-mounted instantaneous auxiliary contact blocks
(not allowed for mounting on TBC, B6S, B7S, interface contactors) (1)
B6-, B7-40-00, BC6-, BC7-40-00 1 1 CAF6-11E GJL1201330R0002 10 0.020 3
VB6, VB7, VBC6, VBC7, VB6A, VB7A 2 0 CAF6-20E GJL1201330R0006 10 0.020
VBC6A, VBC7A
2CDC211007S0010 B6-, B7-30-10, BC6-, BC7-30-10 0 2 CAF6-02E GJL1201330R0010 10 0.020
CAF6-11M
0.020
1 1
10
GJL1201330R0003
VB6, VB7, VBC6, VBC7, VB6A, VB7A
2 0
GJL1201330R0007
10
0.020
CAF6-20M
VBC6A, VBC7A
0 2 CAF6-02M GJL1201330R0011 10 0.020
RV-BC6/250 B6-, B7-30-01, BC6-, BC7-30-01 1 1 CAF6-11N GJL1201330R0004 10 0.020
VB6, VB7, VBC6, VBC7, VB6A, VB7A 2 0 CAF6-20N GJL1201330R0008 10 0.020
VBC6A, VBC7A 0 2 CAF6-02N GJL1201330R0012 10 0.020
Side-mounted instantaneous auxiliary contact block (1)
B6-, B7-40-00, BC6-, BC7-40-00 1 1 CA6-11E GJL1201317R0002 10 0.030
B6-, B7-30-10, BC6-, BC7-30-10 1 1 CA6-11M GJL1201317R0003 10 0.030
B6-, B7-30-01, BC6-, BC7-30-01 1 1 CA6-11N GJL1201317R0004 10 0.030
(1) CA6 and CAF6 must not be fitted simultaneously.
2CDC211008S0010
For contactors Rated control Connection type Type Order code Pkg Weight
CA6-11E-P circuit voltage Uc qty (1 pce)
V DC kg
Surge suppressors for contactor coils
BC6, BC7 24...60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/60 GHV2501902R0003 10 0.005
50...250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/250 GHV2501903R0003 10 0.010
2CDC211018S0011 Note: Mini contactors for AC operation have an integrated protective circuit. GHV2501904R0003 10 0.010
RV-BC6/380
0.005
GHV2501904R0002
380
Cable lug
10
RV-BC6-F/380
Flat pin, 2.8 mm
Connecting links with manual motor starters
CA6-11E
To connect B..VB.. mini contactor to MS116, MS132 BEA7/132 1SBN080906R1002 10 0.013
To connect B..VB.. mini contactors to MS325 BEA7/325 1SBN080906R1001 10 0.021
Connection sets for reversing contactors
VB6, VB7, VBC6, VBC7, VB6A, VB7A, VBC6A, VBC7A, BSM6-30 GJL1201908R0001 10 0.010
cross-section 1.8 mm²
SST27792R Parallel connecting link LP6 GJL1201907R0001 100 0.009
B6, B7, BC6, BC7
Cover cap, transparent fitting to DIN rail design, sealable
BSM6-30 B6, B7, BC6, BC7 LT6-B GJL1201906R0001 10 0.015

Overload relays fitting details (2)
Contactor types Thermal overload relays Electronic overload relays
B6, B7, BC6, BC7 T16 (0.10...16 A) E16DU (0.10...18.9 A)
(2) Direct mounting - No kit required. Ordering details, see overload relays section.
2CDC231012F0011

1SBC101635S0201

T16

ABB Motor protection and control - short form catalog | 3/17
