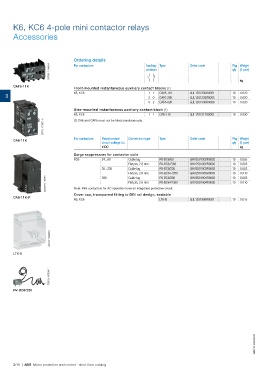

K6, KC6 4-pole mini contactor relays

Accessories

Ordering details
2CDC211019S0011 For contactors Auxiliary Type Order code Pkg Weight
qty
(1 pce)
contacts
kg
CAF6-11K
Front-mounted instantaneous auxiliary contact blocks (1)
K6, KC6 1 1 CAF6-11K GJL1201330R0001 10 0.020
3 2 0 CAF6-20K GJL1201330R0005 10 0.020
0 2 CAF6-02K GJL1201330R0009 10 0.020
Side-mounted instantaneous auxiliary contact block (1)
K6, KC6 1 1 CA6-11K GJL1201317R0001 10 0.030
(1) CA6 and CAF6 must not be fitted simultaneously.
2CDC211009S0010

For contactors Rated control Connection type Type Order code Pkg Weight
CA6-11K
circuit voltage Uc qty (1 pce)
V DC kg
Surge suppressors for contactor coils
KC6 24...60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/60 GHV2501902R0003 10 0.005
50...250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Flat pin, 2.8 mm RV-BC6-F/250 GHV2501903R0003 10 0.010
0.005
RV-BC6/380
2CDC211011S0010 Note: Mini contactors for AC operation have an integrated protective circuit. GHV2501904R0003 10 0.010
GHV2501904R0002
380
10
Cable lug
RV-BC6-F/380
Flat pin, 2.8 mm
Cover cap, transparent fitting to DIN rail design, sealable
CA6-11K-P
K6, KC6 LT6-B GJL1201906R0001 10 0.015

2CDC211006S0010

LT6-B

2CDC211007S0010

RV-BC6/250

1SBC101635S0201

3/18 | ABB Motor protection and control - short form catalog
