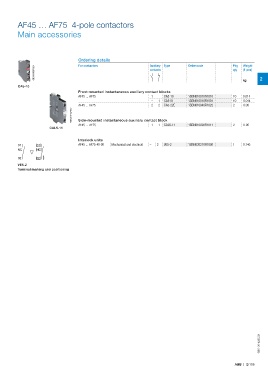

AF45 … AF75 4-pole contactors
Main accessories

Ordering details Auxiliary Type Order code Pkg Weight
For contactors
1SBC580992F0301 contacts qty (1 pce) 2

CA5-10 kg
Front-mounted instantaneous auxiliary contact blocks
AF45 … AF75 1 – CA5-10 1SBN010010R1010 10 0.014
– 1 CA5-01 1SBN010010R1001 10 0.014
AF45 ... AF75 2 2 CA5-22E 1SBN010040R1022 2 0.06
1SBC573752F0301

Side-mounted instantaneous auxiliary contact block
AF45 … AF75 1 1 CAL5-11 1SBN010020R1011 2 0.05
CAL5-11

Interlock units
01 01 AF45 ... AF75-40-00 Mechanical and electrical – 2 VE5-2 1SBN030210R1000 1 0.146
NC NC
02 02 E0085D1
VE5-2
Terminal marking and positioning

1SBC100142S0201

ABB | 2/105
