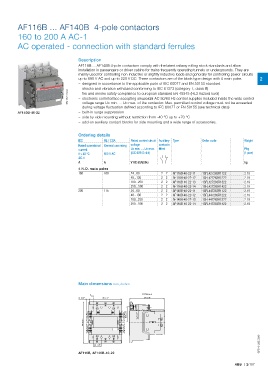

AF116B ... AF140B 4-pole contactors

160 to 200 A AC-1
AC operated - connection with standard ferrules

Description
AF116B ... AF140B 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are
mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power circuits
up to 690 V AC and up to 220 V DC. These contactors are of the block type design with 4 main poles. 2
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
1SFC101217V0002 – fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level)
– electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control
voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
AF140B-40-22 – built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use rating voltage contacts
current Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (IEC 60947-4-1) (1 pce)
AC-1
A A V AC 50/60 Hz kg
4 N.O. main poles
160 160 24...60 2 2 AF116B-40-22-11 1SFL427263R1122 2.19
48...130 2 2 AF116B-40-22-12 1SFL427263R1222 2.19
100...250 2 2 AF116B-40-22-13 1SFL427263R1322 2.19
250…500 2 2 AF116B-40-22-14 1SFL427263R1422 2.19
200 175 24...60 2 2 AF140B-40-22-11 1SFL447263R1122 2.19
48...130 2 2 AF140B-40-22-12 1SFL447263R1222 2.19
100...250 2 2 AF140B-40-22-13 1SFL447263R1322 2.19
250…500 2 2 AF140B-40-22-14 1SFL447263R1422 2.19

Main dimensions mm, inches

SECTION A-A
A A SECTION A-A
10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04"
128 5.04"
55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91"

1SFC101285C0201 1SFC101285C0201

30 1.18" 30 1.18"
AF116B, AF140B-40-22

ABB | 2/107
