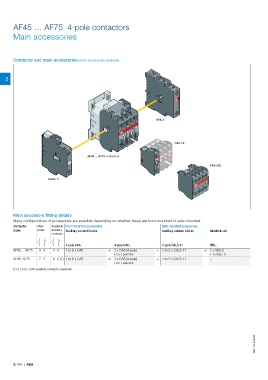

AF45 … AF75 4-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

2

VE5-2

CA5-10

AF45 ... AF75 contactors
CA5-22E

CAL5-11

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks Interlock unit
contacts

1-pole CA5.. 4-pole CA5.. 2-pole CAL5-11 VE5-..
AF45 ... AF75 4 0 0 0 1 to 6 x CA5 or 1 x CA5 (4-pole) + 1 to 2 x CAL5-11 or 1 x VE5-2
+ 2 x 1-pole CA5 + 1 x CAL5-11
AF45, AF75 2 2 0 0 (1) 1 to 6 x CA5 or 1 x CA5 (4-pole) + 1 to 2 x CAL5-11 –
+ 2 x 1-pole CA5
(1) 2 x N.C. CA5 auxiliary contacts maximum.

1SBC100143S0201

2/104 | ABB
