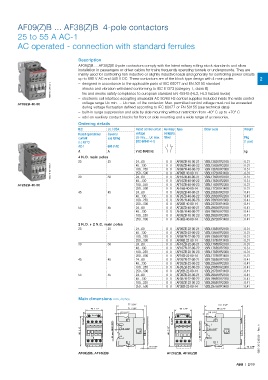

AF09(Z)B ... AF38(Z)B 4-pole contactors

25 to 55 A AC-1
AC operated - connection with standard ferrules

Description
AF09(Z)B ... AF38(Z)B 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are
mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power circuits
up to 690 V AC and 440 V DC. These contactors are of the block type design with 4 main poles. 2
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101020V0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)

voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
AF09ZB-40-00 – electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression and side by side mounting without restriction from -40° C up to +70° C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General voltage contacts
current use rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C (IEC 60947-4-1) (1 pce)
AC-1 600 V AC
A A V AC 50/60 Hz kg
4 N.O. main poles
25 25 24...60 0 0 AF09ZB-40-00-21 1SBL136261R2100 0.31
48...130
1SBC101021V0014 100...250 0 0 AF09ZB-40-00-23 1SBL136261R2300 0.31
0.31
1SBL136261R2200
AF09ZB-40-00-22
0 0
0 0
AF09B-40-00-14
250…500
1SBL137261R1400
0.31
30
30
24...60
48...130 0 0 AF16ZB-40-00-21 1SBL176261R2100 0.31
0 0
1SBL176261R2200
AF16ZB-40-00-22
0.31
AF26ZB-40-00 100...250 0 0 AF16ZB-40-00-23 1SBL176261R2300 0.31
250…500 0 0 AF16B-40-00-14 1SBL177261R1400 0.31
45 45 24...60 0 0 AF26ZB-40-00-21 1SBL236261R2100 0.41
48...130 0 0 AF26ZB-40-00-22 1SBL236261R2200 0.41
100...250 0 0 AF26ZB-40-00-23 1SBL236261R2300 0.41
250…500 0 0 AF26B-40-00-14 1SBL237261R1400 0.41
55 55 24...60 0 0 AF38ZB-40-00-21 1SBL296261R2100 0.41
48...130 0 0 AF38ZB-40-00-22 1SBL296261R2200 0.41
100...250 0 0 AF38ZB-40-00-23 1SBL296261R2300 0.41
250…500 0 0 AF38B-40-00-14 1SBL297261R1400 0.41
2 N.O. + 2 N.C. main poles
25 25 24...60 0 0 AF09ZB-22-00-21 1SBL136561R2100 0.31
48...130 0 0 AF09ZB-22-00-22 1SBL136561R2200 0.31
100...250 0 0 AF09ZB-22-00-23 1SBL136561R2300 0.31
250…500 0 0 AF09B-22-00-14 1SBL137561R1400 0,31
30 30 24...60 0 0 AF16ZB-22-00-21 1SBL176561R2100 0.31
48...130 0 0 AF16ZB-22-00-22 1SBL176561R2200 0.31
100...250 0 0 AF16ZB-22-00-23 1SBL176561R2300 0.31
250…500 0 0 AF16B-22-00-14 1SBL177561R1400 0,31
45 45 24...60 0 0 AF26ZB-22-00-21 1SBL236561R2100 0.41
48...130 0 0 AF26ZB-22-00-22 1SBL236561R2200 0.41
100...250 0 0 AF26ZB-22-00-23 1SBL236561R2300 0.41
250…500 0 0 AF26B-22-00-14 1SBL237561R1400 0,41
55 55 24...60 0 0 AF38ZB-22-00-21 1SBL296561R2100 0.41
48...130 0 0 AF38ZB-22-00-22 1SBL296561R2200 0.41
100...250 0 0 AF38ZB-22-00-23 1SBL296561R2300 0.41
250…500 0 0 AF38B-22-00-14 1SBL297561R1400 0,41
Main dimensions mm, inches
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38"
ø 4.2 0.17" 2 x
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 1SBC100120S0201 - Rev. A 5 0.20"
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09(Z)B, AF16(Z)B AF26(Z)B, AF38(Z)B
ABB | 2/99
