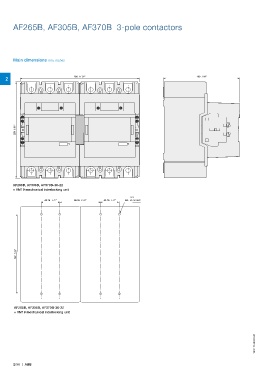

AF265B, AF305B, AF370B  3-pole contactors








       Main dimensions mm, inches



    2                             280  11.02"                                           180  7.09"











        225  8.86"















       AF265B, AF305B, AF370B-30-22
       + VM19 mechanical interlocking unit
                                                           8 X
                     43.75  1.72"  96.25  3.79"  43.75  1.72"  M5  10-24 UNC












        187  7.36"














       AF265B, AF305B, AF370B-30-22
       + VM19 mechanical interlocking unit




                                                                                                                  1SFC101283C0201
