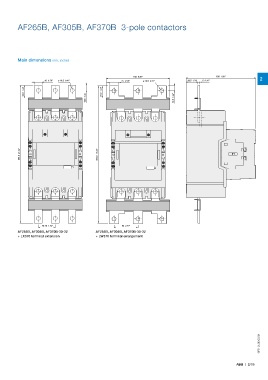

AF265B, AF305B, AF370B 3-pole contactors

Main dimensions mm, inches

165 6.50" 180 7.09" 180 7.09" 180 7.09"
25 0.98"
20 0.79" ø 10.5 0.41" 20 0.79"30.5 1.20" ø 10.5 0.41" ø 10.5 0.41" 30.5 1.20" 30.5 1.20" 5 0.20" 2
5 0.20"
5 0.20"
32.0 1.28" 32.0 1.28" 31.2 1.23"
12.5 0.49" 12.5 0.49" 12.5 0.49"

354.5 20.02" 354.5 20.02" 354.5 13.96"

43.75 1.72" 43.75 1.72" 62 2.44"
AF265B, AF305B, AF370B-30-22 AF265B, AF305B, AF370B-30-22
+ LX370 terminal extension + LW370 terminal enlargement
