AF116B, AF140B, AF146B 3-pole contactors

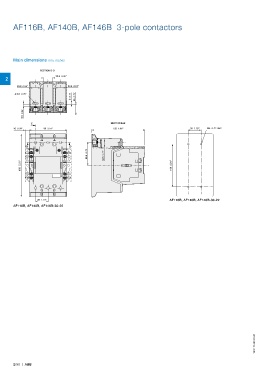

Main dimensions mm, inches
SECTION D-D
2 22.8 0.90"
23.8 0.94" 23.8 0.94"
3 0.12" 20 0.79"
ΓΈ 6.5 0.26"
5.5 0.22"
E SECTION E-E
10 0.39" 90 3.54" 126 4.96" 30 1.18" M4 8-32 UNC
D D
55.5 2.18" 19.5 0.77"
150 5.91" 100 3.94"
30 1.18" AF116B, AF140B, AF146B-30-22
AF116B, AF140B, AF146B-30-22
