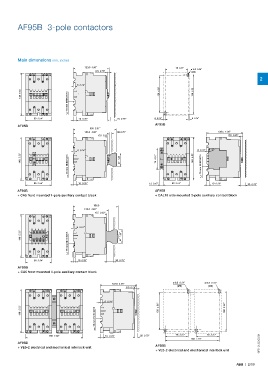

AF95B 3-pole contactors

Main dimensions mm, inches
123.5 4.86" 78 3.07"
6.5 0.26" ø 6.2 0.24"
(M6)
2
6 0.24"
148 5.83" 126 4.96" 136 5.35"
75 mm EN/IEC 60715

90 3.54" 10 0.39" 20 0.79" 6 0.24" 6 0.24"
AF95B
AF95B
150 5.91"
123.5 4.86" 20 0.79" 123.5 4.86"
6.5 0.26" 6.5 0.26"

6 0.24" 6 0.24"
148 5.83" 47 1.85" 74 2.91" 148 5.83"
75 mm EN/IEC 60715 75 mm EN/IEC 60715

90 3.54" 10 0.39" 12 0.47" 90 3.54" 10 0.39" 20 0.79"
AF95B AF95B
+ CA5 front mounted 1-pole auxiliary contact block + CAL18 side mounted 2-pole auxiliary contact block
156,5
123.5 4.86"
6.5 0.26"

6 0.24"
148 5.83" 47 1.85"
75 mm EN/IEC 60715

90 3.54" 10 0.39" 20 0.79"
AF95B
+ CA5 front mounted 4-pole auxiliary contact block

ø 6.2 0.24" ø 6.2 0.24"
123.5 4.86"
6.5 0.26" (M6) (M6)

6 0.24"
148 5.83" 126 4.96" 136 5.35"
75 mm EN/IEC 60715

195 7.68" 10 0.39" 20 0.79" 78 3.07" 78 3.07"
183 7.20"
AF95B 1SFC101303C0201
+ VE5-2 electrical and mechanical interlock unit AF95B
+ VE5-2 electrical and mechanical interlock unit
