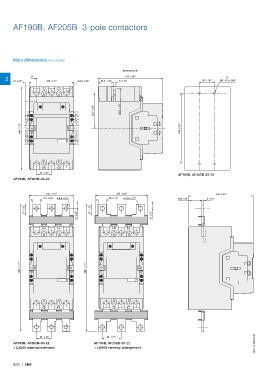

AF190B, AF205B 3-pole contactors

Main dimensions mm, inches

SECTION B-B
4 X
2 10 0.39" B 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20" 152 5.98" 35 1.38" M5 10-24 UNC

83.5 3.29" 29.5 1.16"

196 7.72" 165 6.50"

35 1.38"
AF190B, AF205B-30-22
AF190B, AF205B-30-22

105 4.13" 125 4.92" 152 5.98" 152 5.98" 152 5.98"
125 4.92"
17.5 0.69" ø 8.5 0.33" 30.5 1.20" 20 0.79" ø 10.5 0.41" ø 10.5 0.41" 30.5 1.20" 30.5 1.20" 5 0.20" 5 0.20"
5 0.20"
20 0.79"
27 1.06" 27 1.06" 27 1.06"
10 0.39" 10 0.37" 10 0.37"

299 11.77" 299 11.77" 299 11.77"

1SFC101282C0201
35 1.38" 45 1.77" 45 1.77"
AF190B, AF205B-30-22 AF190B, AF205B-30-22
+ LX205 terminal extension + LW205 terminal enlargement
