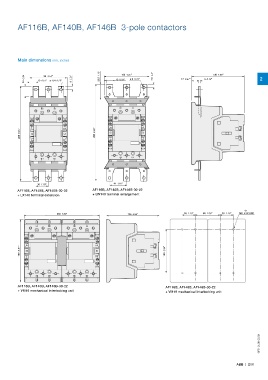

AF116B, AF140B, AF146B 3-pole contactors

Main dimensions mm, inches

7.5 0.3"
108 4.25"
24 0.94" 13 0.51" ø 6.4 0.25" 8 0.31" 17 0.67" 29.5 1.16" 3 0.12" 126 4.96" 24 0.94" ø 6 0.24" 13 0.51" ø 6.4 0.25" 8 0.31" 17 0.67" 126 4.96" 3 0.12" 126 4.96" 2
90 3.54"
90 3.54"
17 0.67"
3 0.12"
15 0.59"

226 8.90" 228 8.98" 226 8.90"

30 1.18" 41 1.61" 30 1.18"
AF116B, AF140B, AF146B-30-22 AF116B, AF140B, AF146B-30-22
+ LX140 terminal extension + LW140 terminal enlargement

8x
180 7.09" 180 7.09" 126 4.96" 126 4.96" 30 1.18" 60 2.36" 30 1.18" M4 8-32 UNC

150 5.91" 150 5.91" 100 3.94"

AF116B, AF140B, AF146B-30-22 AF116B, AF140B, AF146B-30-22
+ VM19 mechanical interlocking unit + VM19 mechanical interlocking unit

1SFC101281C0201
