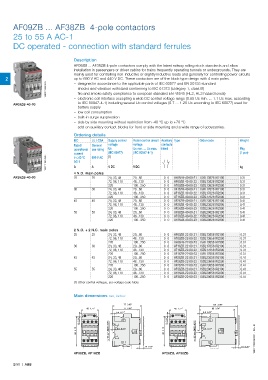

AF09ZB ... AF38ZB 4-pole contactors

25 to 55 A AC-1
DC operated - connection with standard ferrules

Description
AF09ZB ... AF38ZB 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are
mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power circuits
2 up to 690 V AC and 440 V DC. These contactors are of the block type design with 4 main poles.
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101020V0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. according
to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077) used for
AF09ZB-40-00
battery supply
– low coil consumption
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Supply control Rated control circuit Auxiliary Type Order code Weight
Rated General voltage voltage contacts
operational use rating Uc Uc min. … Uc max. fitted Pkg
current 600 V AC (IEC 60077) (IEC 60947-4-1) (1 pce)
(1)
1SBC101021V0014 AC-1 A V DC V DC kg
θ ≤ 40 °C
A
4 N.O. main poles
AF26ZB-40-00 25 25 24, 33, 48 20...60 0 0 AF09ZB-40-00-21 1SBL136261R2100 0.31
72, 96, 110 48...130 0 0 AF09ZB-40-00-22 1SBL136261R2200 0.31
220 100...250 0 0 AF09ZB-40-00-23 1SBL136261R2300 0.31
30 30 24, 33, 48 20...60 0 0 AF16ZB-40-00-21 1SBL176261R2100 0.31
72, 96, 110 48...130 0 0 AF16ZB-40-00-22 1SBL176261R2200 0.31
220 100...250 0 0 AF16ZB-40-00-23 1SBL176261R2300 0.31
45 45 24, 33, 48 20...60 0 0 AF26ZB-40-00-21 1SBL236261R2100 0.41
72, 96, 110 48...130 0 0 AF26ZB-40-00-22 1SBL236261R2200 0.41
220 100...250 0 0 AF26ZB-40-00-23 1SBL236261R2300 0.41
55 55 24, 33, 48 20...60 0 0 AF38ZB-40-00-21 1SBL296261R2100 0.41
72, 96, 110 48...130 0 0 AF38ZB-40-00-22 1SBL296261R2200 0.41
220 100...250 0 0 AF38ZB-40-00-23 1SBL296261R2300 0.41

2 N.O. + 2 N.C. main poles
25 25 24, 33, 48 20...60 0 0 AF09ZB-22-00-21 1SBL136561R2100 0.31
72, 96, 110 48...130 0 0 AF09ZB-22-00-22 1SBL136561R2200 0.31
220 100...250 0 0 AF09ZB-22-00-23 1SBL136561R2300 0.31
30 30 24, 33, 48 20...60 0 0 AF16ZB-22-00-21 1SBL176561R2100 0.31
72, 96, 110 48...130 0 0 AF16ZB-22-00-22 1SBL176561R2200 0.31
220 100...250 0 0 AF16ZB-22-00-23 1SBL176561R2300 0.31
45 45 24, 33, 48 20...60 0 0 AF26ZB-22-00-21 1SBL236561R2100 0.41
72, 96, 110 48...130 0 0 AF26ZB-22-00-22 1SBL236561R2200 0.41
220 100...250 0 0 AF26ZB-22-00-23 1SBL236561R2300 0.41
55 55 24, 33, 48 20...60 0 0 AF38ZB-22-00-21 1SBL296561R2100 0.41
72, 96, 110 48...130 0 0 AF38ZB-22-00-22 1SBL296561R2200 0.41
220 100...250 0 0 AF38ZB-22-00-23 1SBL296561R2300 0.41
(1) Other control voltages, see voltage code table.

Main dimensions mm, inches

77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"

5 0.20" 1SBC101803S0201 - Rev. B 5 0.20"

10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09ZB, AF16ZB AF26ZB, AF38ZB
