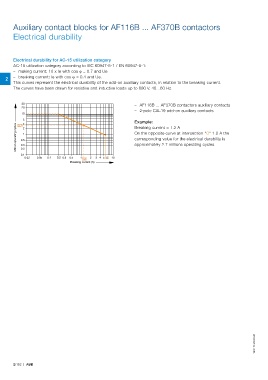

Auxiliary contact blocks for AF116B ... AF370B contactors

Electrical durability

Electrical durability for AC-15 utilization category
AC-15 utilization category according to IEC 60947-5-1 / EN 60947-5-1:
– making current: 10 x Ie with cos ϕ = 0.7 and Ue
2 – breaking current: Ie with cos ϕ = 0.4 and Ue.
This curves represent the electrical durability of the add-on auxiliary contacts, in relation to the breaking current.
The curves have been drawn for resistive and inductive loads up to 690 V, 40...60 Hz.

30 – AF116B ... AF370B contactors auxiliary contacts
20
– 2-pole CAL19 add-on auxiliary contacts
10
5 3 2 Example:
Million operating cycles 0.5 1 On the opposite curve at intersection "O" 1.2 A the
2.7
Breaking current = 1.2 A
corresponding value for the electrical durability is
approximately 2.7 millions operating cycles.
0.3
0.2
0.1
0.02 0.05 0.1 0.2 0.3 0.5 1 2 3 45 6 10
1.2
Breaking current (A)

1SFC101300C0201
