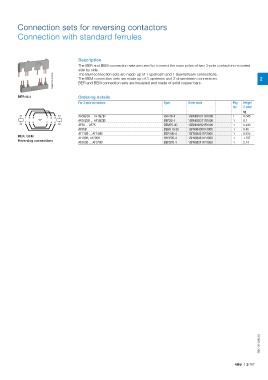

Page 169 - contactors_motor_protection_for_rolling_stock_application

Connection sets for reversing contactors

Connection with standard ferrules

Description
The BER and BEM connection sets are used to connect the main poles of two 3-pole contactors mounted
side by side.
The BER connection sets are made up of 1 upstream and 1 downstream connections.
1SBC100016V0014 The BEM connection sets are made up of 3 upstream and 3 downstream connections. 2
BER and BEM connection sets are insulated and made of solid copper bars.

BER16-4 Ordering details
For 3-pole contactors Type Order code Pkg Weight
qty (1 pce)
kg
A1 A1 AF09(Z)B ... AF16(Z)B BER16-4 1SBN081311R1000 1 0.045
1 3 5 1 3 5
AF26(Z)B ... AF38(Z)B BER38-4 1SBN082311R1000 1 0.1
2 4 6 2 4 6
A2 A2 AF50 ... AF75 BEM75-30 1SBN083501R1000 1 0.243
AF95B BEM110-30 1SFN084301R1000 1 0.45
AF116B ... AF146B BER140-4 1SFN084211R1000 1 0.615
BER, BEM AF190B, AF205B BER205-4 1SFN084811R1000 1 1.237
Reversing connections
AF265B ... AF370B BER370-4 1SFN085411R1000 1 2.14

1SBC100152S0201

ABB | 2/157
