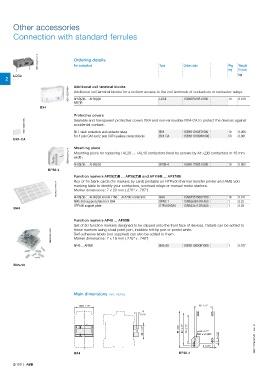

Page 170 - contactors_motor_protection_for_rolling_stock_application

Other accessories

Connection with standard ferrules

1SBC100020V0014 Ordering details Type Order code Pkg Weight

For contactors
kg
LDC4 qty (1 pce)
2
1SBC100021V0014 Additional coil terminal blocks
Additional coil terminal blocks for a bottom access to the coil terminals of contactors or contactor relays.
AF09(Z)B ... AF38(Z)B
NF(Z)B LDC4 1SBN070156T1000 10 0.010
BX4
Protective covers
1SBC100023V0014 accidental contact.
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against
All 1-stack contactors and contactor relays
For 4-pole CA4 and 2-pole CAT4 auxiliary contact blocks BX4 1SBN110108T1000 10 0.006
50
0.001
1SBN110109W1000
BX4-CA
BX4-CA
Mounting piece
1SBC100022V0014 Mounting piece for replacing TAL26 ... TAL40 contactors fixed by screws by AF..(Z)B contactors in 45 mm
width.
BP38-4 AF09(Z)B ... AF38(Z)B BP38-4 1SBN112303T1000 10 0.003
Function markers AF09(Z)B ... AF38(Z)B and AF116B ... AF370B
Box of 16 blank cards (16 markers by card) printable on HTP500 thermal transfer printer and AMS 500
1SNC160101F0014 Marker dimensions: 7 x 20 mm (.276" x .787").
marking table to identify your contactors, overload relays or manual motor starters.
AF09(Z)B ... AF38(Z)B and AF116B ... AF370B contactors
1SNA360010R1500
1
SPRC 1
AMS 500 support plate for 8 BA4 BA4 1SNA235156R2700 16 0.011
0.22
HTP500 support plate HTP500-BA4 1SNA235712R2400 1 0.29
BA4
Function markers AF45 ... AF95B
Set of 50 function markers designed to be clipped onto the front face of devices. Details can be added to
these markers using a ball point pen, indelible felt-tip pen or pentel white.
1SBC575874F0301 Self-adhesive labels (not supplied) can also be added to them.
Marker dimensions: 7 x 19 mm (.276" x .748").
AF45 ... AF95B BA5-50 1SBN110000R1000 1 0.017

BA5-50

Main dimensions mm, inches

44.8 1.76" 45 1.77"

6
0.24"

28 1.10" 90 3.54" 80 3.15" 70 2.76" ø 4.2 0.17" 5 0.20"
M4 8-32 UNC

5 0.20" 1SBC101765S0201 - Rev. B
54 2.13"
BX4 BP38-4
2/158 | ABB
