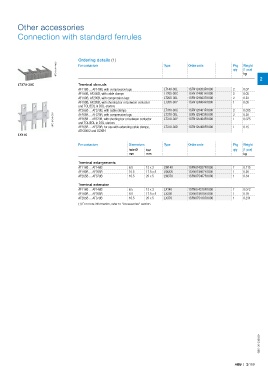

Other accessories

Connection with standard ferrules

Ordering details (1)
1SFC101041V0001 For contactors Type Order code Pkg Weight
(1 pce)
qty
kg
2
LT370-30C Terminal shrouds
AF116B ... AF146B, with compression lugs LT140-30L 1SFN124203R1000 2 0.07
AF190B, AF205B, with cable clamps LT205-30C 1SFN124801R1000 2 0.05
AF190B, AF205B, with compression lugs LT205-30L 1SFN124803R1000 2 0.22
AF190B, AF205B, with shorting bar or between contactor LT205-30Y 1SFN124804R1000 1 0.05
and TOL/EOL in DOL-starters
AF265B ... AF370B, with cable clamps LT370-30C 1SFN125401R1000 2 2 0.035
1SFC101049V0001 AF265B ... AF370B, with shorting bar or between contactor LT370-30Y 1SFN125404R1000 1 0.075
LT370-30L
0.28
1SFN125403R1000
AF265B ... AF370B, with compression lugs
and TOL/EOL in DOL-starters
AF265B ... AF370B, for use with extending cable clamps,
ATK300/2 and OZXB4 LT370-30D 1SFN125406R1000 1 0.15
LX140
For contactors Dimensions Type Order code Pkg Weight
hole Ø bar qty (1 pce)
mm mm kg
Terminal enlargements
AF116B ... AF146B 6.5 13 x 3 LW140 1SFN074207R1000 1 0.115
AF190B ... AF205B 10.5 17.5 x 5 LW205 1SFN074807R1000 1 0.26
AF265B ... AF370B 10.5 20 x 5 LW370 1SFN075407R1000 1 0.34

Terminal extension
AF116B ... AF146B 6.5 13 x 3 LX140 1SFN074210R1000 1 0.072
AF190B ... AF205B 8.5 17.5 x 5 LX205 1SFN074810R1000 1 0.18
AF265B ... AF370B 10.5 20 x 5 LX370 1SFN075410R1000 1 0.234
(1) For more information, refer to "Accessories" section.
