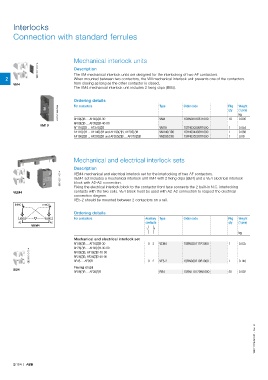

Interlocks

Connection with standard ferrules

Mechanical interlock units
1SBC100010V0014 Description

The VM mechanical interlock units are designed for the interlocking of two AF contactors.
2 When mounted between two contactors, the VM mechanical interlock unit prevents one of the contactors
VM4 from closing as long as the other contactor is closed.
The VM4 mechanical interlock unit includes 2 fixing clips (BB4).

Ordering details Type Order code Pkg Weight
For contactors
1SFC101035V0001 qty (1 pce)
kg
AF09(Z)B ... AF38(Z)B-30
AF09(Z)B ... AF38(Z)B-40-00 VM4 1SBN030105T1000 10 0.005
VM19
AF116(Z)B ... AF370(Z)B VM19 1SFN030300R1000 1 0.054
AF116(Z)B ... AF146(Z)B and AF190(Z)B, AF205(Z)B VM140/190 1SFN034403R1000 1 0.088
AF190(Z)B ... AF205(Z)B and AF265(Z)B ... AF370(Z)B VM205/265 1SFN035203R1000 1 0.09

Mechanical and electrical interlock sets

Description
1SBC100011V0014 VEM4 mechanical and electrical interlock set for the interlocking of two AF contactors.
VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock
block with A2-A2 connection.
contacts with the two coils. VE4 block must be used with A2-A2 connection to respect the electrical
VEM4 Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking
connection diagram.
VE5-2 should be mounted between 2 contactors on a rail.
01NC 01NC
Ordering details
KM1 KM2 For contactors Auxiliary Type Order code Pkg Weight
A2 A2 contacts qty (1 pce)
VEM4
kg
Mechanical and electrical interlock set
AF09(Z)B ... AF16(Z)B-30 0 2 VEM4 1SBN030111R1000 1 0.035
AF26(Z)B ... AF38(Z)B-30-00
1SBC100013V0014 AF09(Z)B, AF16(Z)B-40-00 0 2 VE5-2 1SBN030210R1000 1 0.146
AF26(Z)B, AF38(Z)B-40-00
AF45 ... AF95B
Fixing clips
BB4
AF09(Z)B ... AF38(Z)B BB4 1SBN110120W1000 50 0.002

1SBC101764S0201 - Rev. B
