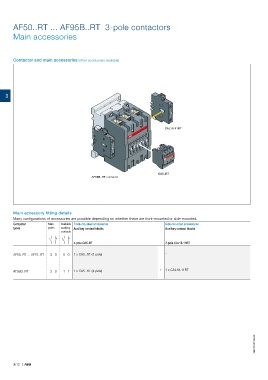

Page 192 - contactors_motor_protection_for_rolling_stock_application

AF50..RT ... AF95B..RT 3-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

3

CAL18-11RT

CA5..RT
AF95B..RT contactor

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks
contacts

4-pole CA5..RT 2-pole CAL18-11RT

AF50..RT ... AF75..RT 3 0 0 0 1 x CA5..RT (4-pole) -

AF95B..RT 3 0 1 1 1 x CA5..RT (4-pole) + 1 x CAL18-11RT

1SBC100073S0201

3/12 | ABB
