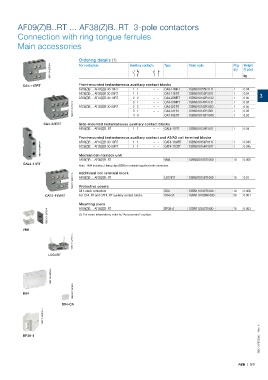

Page 189 - contactors_motor_protection_for_rolling_stock_application

AF09(Z)B..RT ... AF38(Z)B..RT 3-pole contactors

Connection with ring tongue ferrules
Main accessories

Ordering details (1)
1SBC101423F0014 For contactors Auxiliary contacts Type Order code Pkg Weight
(1 pce)
qty
kg
CA4-11ERT Front-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF16(Z)B-30-10RT 1 1 – – CA4-11MRT 1SBN010155R1111 1 0.04
AF26(Z)B ... AF38(Z)B-30-00RT 1 1 – – CA4-11ERT 1SBN010155R1011 1 0.04 3
AF09(Z)B ... AF16(Z)B-30-10RT 2 2 – – CA4-22MRT 1SBN010142R1122 1 1 0.05
1SBN010142R1131
– –
3 1
CA4-31MRT
0.05
1SBC101421F0014 AF26(Z)B ... AF38(Z)B-30-00RT 2 2 – – CA4-22ERT 1SBN010142R1022 1 1 1 0.05
1SBN010142R1031
0.05
– –
3 1
CA4-31ERT
4 0
– –
CA4-40ERT
1SBN010142R1040
0.05
CA4-22ERT Side-mounted instantaneous auxiliary contact blocks
AF09(Z)B ... AF38(Z)B..RT 1 1 – – CAL4-11RT 1SBN010129R1011 1 0.04
Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks 1 0.045
1 1
AF09(Z)B ... AF16(Z)B-30-10RT
1SBN010154R1111
CAT4-11MRT
– –
1SBC101426F0014 AF26(Z)B ... AF38(Z)B-30-00RT 1 1 – – CAT4-11ERT 1SBN010154R1011 1 0.045
Mechanical interlock unit
AF09(Z)B ... AF38(Z)B..RT VM4 1SBN030105T1000 10 0.005
CAL4-11RT
Note: VM4 includes 2 fixing clips (BB4) to maintain together both contactors.
Additional coil terminal block
1SBC101422F0014 AF09(Z)B ... AF38(Z)B..RT LDC4RT 1SBN070158T1000 10 0.01
Protective covers
All 1-stack contactors BX4 1SBN110108T1000 10 0.006
CAT4-11MRT For CA4..RT and CAT4..RT auxiliary contact blocks BX4-CA 1SBN110109W1000 50 0.001
Mounting piece BP38-4 1SBN112303T1000 10 0.003
AF09(Z)B ... AF38(Z)B..RT
1SBC101128F0014 (1) For more information, refer to "Accessories" section.
VM4
1SBC101427F0014

LDC4RT

1SBC101136F0014

1SBC101138F0014

BX4

BX4-CA
1SBC101383F0014

1SBC101767S0201 - Rev. A
BP38-4

ABB | 3/9
