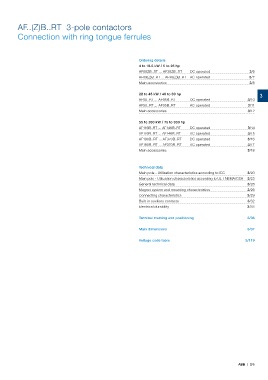

AF..(Z)B..RT 3-pole contactors
Connection with ring tongue ferrules
Ordering details
4 to 18.5 kW / 5 to 25 hp
AF09ZB..RT ... AF38ZB..RT DC operated 3/6
AF09(Z)B..RT ... AF38(Z)B..RT AC operated 3/7
Main accessories 3/8
22 to 45 kW / 40 to 60 hp 3
AF50..RT ... AF95B..RT DC operated 3/10
AF50..RT ... AF95B..RT AC operated 3/11
Main accessories 3/12
55 to 200 kW / 75 to 300 hp
AF116B..RT ... AF146B..RT DC operated 3/14
AF116B..RT ... AF146B..RT AC operated 3/15
AF190B..RT ... AF370B..RT DC operated 3/16
AF190B..RT ... AF370B..RT AC operated 3/17
Main accessories 3/18
Technical data
Main pole - Utilization characteristics according to IEC 3/20
Main pole - Utilization characteristics according to UL / NEMA/CSA 3/23
General technical data 3/26
Magnet system and mounting characteristics 3/26
Connecting characteristics 3/29
Built-in auxiliary contacts 3/32
Electrical durability 3/33
Terminal marking and positioning 3/36
Main dimensions 3/37
Voltage code table 3/119
ABB | 3/5
