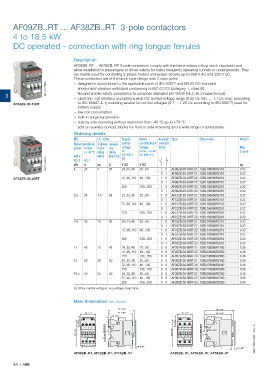

AF09ZB..RT ... AF38ZB..RT 3-pole contactors

4 to 18.5 kW
DC operated - connection with ring tongue ferrules

Description
AF09ZB..RT ... AF38ZB..RT 3-pole contactors comply with the latest railway rolling stock standards and
allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They
are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC.
These contactors are of the block type design with 3 main poles.
1SBC101407F0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard

3 – fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. according
AF09ZB-30-10RT to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077) used for
battery supply
– low coil consumption
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Supply Rated Auxiliary Type Order code Weight
Rated operational 3-phase General control control circuit contacts
power current motor use voltage voltage fitted Pkg
θ ≤ 40 °C rating rating Uc Uc min. … Uc max. (1 pce)
(IEC 60077)
(IEC 60947-4-1)
480 V
600 V AC
400 V
1SBC101409F0014 AC-3 AC-1 hp A (1) V DC kg
kW
V DC
A
1 0
20...60
25
5
24, 33, 48
25
4
0 1 AF09ZB-30-10RT-21 1SBL136060R2110 0.32
0.32
AF09ZB-30-01RT-21 1SBL136060R2101
AF26ZB-30-00RT 72, 96, 110 48...130 1 0 AF09ZB-30-10RT-22 1SBL136060R2210 0.32
0 1 AF09ZB-30-01RT-22 1SBL136060R2201 0.32
220 100...250 1 0 AF09ZB-30-10RT-23 1SBL136060R2310 0.32
0 1 AF09ZB-30-01RT-23 1SBL136060R2301 0.32
5.5 28 7.5 28 24, 33, 48 20...60 1 0 AF12ZB-30-10RT-21 1SBL156060R2110 0.32
0 1 AF12ZB-30-01RT-21 1SBL156060R2101 0.32
72, 96, 110 48...130 1 0 AF12ZB-30-10RT-22 1SBL156060R2210 0.32
0 1 AF12ZB-30-01RT-22 1SBL156060R2201 0.32
220 100...250 1 0 AF12ZB-30-10RT-23 1SBL156060R2310 0.32
0 1 AF12ZB-30-01RT-23 1SBL156060R2301 0.32
7.5 30 10 30 24, 33, 48 20...60 1 0 AF16ZB-30-10RT-21 1SBL176060R2110 0.32
0 1 AF16ZB-30-01RT-21 1SBL176060R2101 0.32
72, 96, 110 48...130 1 0 AF16ZB-30-10RT-22 1SBL176060R2210 0.32
0 1 AF16ZB-30-01RT-22 1SBL176060R2201 0.32
220 100...250 1 0 AF16ZB-30-10RT-23 1SBL176060R2310 0.32
0 1 AF16ZB-30-01RT-23 1SBL176060R2301 0.32
11 45 15 45 24, 33, 48 20...60 0 0 AF26ZB-30-00RT-21 1SBL236060R2100 0.36
72, 96, 110 48...130 0 0 AF26ZB-30-00RT-22 1SBL236060R2200 0.36
220 100...250 0 0 AF26ZB-30-00RT-23 1SBL236060R2300 0.36
15 50 20 50 24, 33, 48 20...60 0 0 AF30ZB-30-00RT-21 1SBL276060R2100 0.36
72, 96, 110 48...130 0 0 AF30ZB-30-00RT-22 1SBL276060R2200 0.36
220 100...250 0 0 AF30ZB-30-00RT-23 1SBL276060R2300 0.36
18.5 50 25 50 24, 33, 48 20...60 0 0 AF38ZB-30-00RT-21 1SBL296060R2100 0.36
72, 96, 110 48...130 0 0 AF38ZB-30-00RT-22 1SBL296060R2200 0.36
220 100...250 0 0 AF38ZB-30-00RT-23 1SBL296060R2300 0.36
(1) Other control voltages, see voltage code table.
Main dimensions mm, inches
77 3.03" 86 3.39"
35 1.38"
45 1.77" 71 2.80" 2 x 45 1.77" 80 3.15" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 1SBC101810S0201 - Rev. A 5 0.20"
10 0.39"
5 0.20" 10 0.39" 5 0.20"
AF09ZB..RT, AF12ZB..RT, AF16ZB..RT AF26ZB..RT, AF30ZB..RT, AF38ZB..RT
