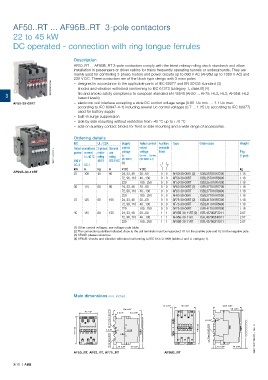

AF50..RT ... AF95B..RT 3-pole contactors

22 to 45 kW
DC operated - connection with ring tongue ferrules

Description
AF50..RT ... AF95B..RT 3-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are
mainly used for controlling 3-phase motors and power circuits up to 690 V AC (AF95B up to 1000 V AC) and
220 V DC. These contactors are of the block type design with 3 main poles.
1SBC587204F0301 – designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard (3)
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B) (4)
3 – fire and smoke safety compliance to european standard EN 45545 (AF50 ... AF75: HL2, HL3; AF95B: HL2
hazard levels)
AF50-30-00RT – electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
according to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077)
used for battery supply
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
IEC UL / CSA Supply Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General control circuit contacts Pkg
1SBC101510F0014 power current motor use Uc Uc min. … Uc max. (1 pce)
voltage
voltage
fitted
rating
rating
θ ≤ 40 °C
(IEC 60947-4-1)
(IEC 60077)
480 V
600 V AC
400 V
AC-3 AC-1 (1)
kW A hp A V DC V DC kg
AF95B-30-11RT
22 100 40 80 24, 33, 48 20...60 0 0 AF50-30-00RT (2) 1SBL357010R7200 1.18
72, 96, 110 48...130 0 0 AF50-30-00RT 1SBL357010R6900 1.18
220 100...250 0 0 AF50-30-00RT 1SBL357010R7000 1.18
30 115 60 90 24, 33, 48 20...60 0 0 AF63-30-00RT (2) 1SBL377010R7200 1.18
72, 96, 110 48...130 0 0 AF63-30-00RT 1SBL377010R6900 1.18
220 100...250 0 0 AF63-30-00RT 1SBL377010R7000 1.18
37 125 60 105 24, 33, 48 20...60 0 0 AF75-30-00RT (2) 1SBL417010R7200 1.18
72, 96, 110 48...130 0 0 AF75-30-00RT 1SBL417010R6900 1.18
220 100...250 0 0 AF75-30-00RT 1SBL417010R7000 1.18
45 145 60 125 24, 33, 48 20...60 1 1 AF95B-30-11RT (2) 1SFL437062R7211 2.07
72, 96, 110 48...130 1 1 AF95B-30-11RT 1SFL437062R6911 2.07
220 100...250 1 1 AF95B-30-11RT 1SFL437062R7011 2.07
(1) Other control voltages, see voltage code table.
(2) The connection polarities indicated close to the coil terminals must be respected: A1 for the positive pole and A2 for the negative pole.
(3) AF95B: please consult us.
(4) AF95B: shocks and vibration withstand conforming to IEC 61373:1999 (tables 2 and 3, category 1).

Main dimensions mm, inches
12 0.47" 90 3.54" 123.5 4.86"
35 mm x15 EN/IEC 60715 6 0.24"
70 2.76" 6 0.24" 108 4.25" 6.5 0.26" 6.5 0.26"

110 4.33" 4 0.16" 148 5.83" 75 mm EN/IEC 60715
75 mm EN/IEC 60715 1SBC100071S0201 - Rev. A

AF50..RT, AF63..RT, AF75..RT 10 0.39" 10 0.39" AF95B..RT 10 0.39" 20 0.79"
