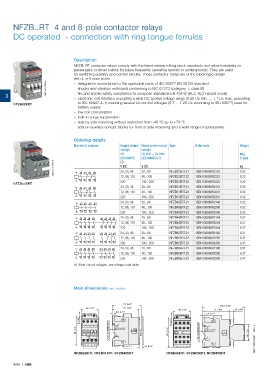

Page 276 - contactors_motor_protection_for_rolling_stock_application

NFZB..RT 4 and 8-pole contactor relays

DC operated - connection with ring tongue ferrules

Description
NFZB..RT contactor relays comply with the latest railway rolling stock standards and allow installation in
passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used
for switching auxiliary and control circuits. These contactor relays are of the block type design
with 4 or 8 main poles.
1SBC101403F0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– designed in accordance to the applicable parts of IEC 60077 EN 50155 standard

3 – fire and smoke safety compliance to european standards EN 45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. according
NFZB22ERT to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to IEC 60077) used for
battery supply
– low coil consumption
– built-in surge suppression
– side by side mounting without restriction from -40 °C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
Number of contacts Supply control Rated control circuit Type Order code Weight
voltage voltage
Uc Uc min. ... Uc max. Pkg
(IEC 60077) (IEC 60947-4-1) (1 pce)
(1)
1SBC101415F0014 A1 NO 13 NC 21 NC 31 NO 43 V DC V DC NFZB22ERT-21 1SBH136060R2122 kg
0.32
20...60
24, 33, 48
NO NC NC NO 72, 96, 110 48...130 NFZB22ERT-22 1SBH136060R2222 0.32
A2 14 22 32 44 220 100...250 NFZB22ERT-23 1SBH136060R2322 0.32
NFZB44ERT
A1 13 21 33 43 24, 33, 48 20...60 NFZB31ERT-21 1SBH136060R2131 0.32
NO NC NO NO
72, 96, 110 48...130 NFZB31ERT-22 1SBH136060R2231 0.32
NO NC NO NO
A2 14 22 34 44 220 100...250 NFZB31ERT-23 1SBH136060R2331 0.32
24, 33, 48 20...60 NFZB40ERT-21 1SBH136060R2140 0.32
A1 13 23 33 43
NO NO NO NO
72, 96, 110 48...130 NFZB40ERT-22 1SBH136060R2240 0.32
NO NO NO NO
A2 14 24 34 44 220 100...250 NFZB40ERT-23 1SBH136060R2340 0.32
24, 33, 48 20...60 NFZB44ERT-21 1SBH136060R2144 0.37
A1 13 23 33 43 51 61 71 81
NO NO NO NO NC NC NC NC
72, 96, 110 48...130 NFZB44ERT-22 1SBH136060R2244 0.37
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82 220 100...250 NFZB44ERT-23 1SBH136060R2344 0.37
A1 13 23 33 43 53 61 71 83 24, 33, 48 20...60 NFZB62ERT-21 1SBH136060R2162 0.37
NO NO NO NO NO NC NC NO
72, 96, 110 48...130 NFZB62ERT-22 1SBH136060R2262 0.37
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84 220 100...250 NFZB62ERT-23 1SBH136060R2362 0.37
24, 33, 48 20...60 NFZB80ERT-21 1SBH136060R2180 0.37
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO
72, 96, 110 48...130 NFZB80ERT-22 1SBH136060R2280 0.37
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84 220 100...250 NFZB80ERT-23 1SBH136060R2380 0.37
(1) Other control voltages, see voltage code table.
Main dimensions mm, inches
77 3.03"
35 1.38" 110.5 4.35"
45 1.77" 71 2.80" 2 x
45 1.77"
ø 4.2 0.17" 71 2.80" 10 0.39" 35 1.38" 2 x
5.5 0.22" M4 8-32 UNC
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 1SBC101814S0201 - Rev. A 5 0.20"

10 0.39"
5 0.20" 5 0.20"
NFZB22ERT, NFZB31ERT, NFZB40ERT NFZB44ERT, NFZB62ERT, NFZB80ERT
