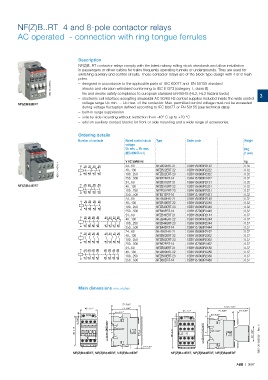

Page 277 - contactors_motor_protection_for_rolling_stock_application

NF(Z)B..RT 4 and 8-pole contactor relays

AC operated - connection with ring tongue ferrules

Description
NF(Z)B..RT contactor relays comply with the latest railway rolling stock standards and allow installation
in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used for
switching auxiliary and control circuits. These contactor relays are of the block type design with 4 or 8 main
poles.
1SBC101403F0014 – shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
– fire and smoke safety compliance to european standard EN45545 (HL2, HL3 hazard levels)
– electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control 3
NF(Z)B22ERT voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
– built-in surge suppression
– side by side mounting without restriction from -40° C up to +70 °C
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering details
Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. ... Uc max. Pkg
(IEC 60947-4-1) (1 pce)
V AC 50/60 Hz kg
1SBC101415F0014 A2 A1 NO 13 14 NC NC 21 22 NC 31 32 NO 43 44 24...60 NFZB22ERT-21 1SBH136060R2122 0.32
NO
NFZB22ERT-22
48...130
1SBH136060R2222
0.32
100...250
1SBH136060R2322
NFZB22ERT-23
0.32
NC
NO
250…500
24...60 NFB22ERT-14 1SBH137060R1422 0.32
0.32
1SBH136060R2131
NFZB31ERT-21
NF(Z)B44ERT A1 NO 13 NC 21 NO 33 NO 43 48...130 NFZB31ERT-22 1SBH136060R2231 0.32
100...250 NFZB31ERT-23 1SBH136060R2331 0.32
NO NC NO NO
A2 14 22 34 44
250…500 NFB31ERT-14 1SBH137060R1431 0.32
24...60 NFZB40ERT-21 1SBH136060R2140 0.32
A1 13 23 33 43
NO NO NO NO 48...130 NFZB40ERT-22 1SBH136060R2240 0.32
100...250 NFZB40ERT-23 1SBH136060R2340 0.32
NO NO NO NO
250…500 NFB40ERT-14 1SBH137060R1440 0,32
A2 14 24 34 44
24...60 NFZB44ERT-21 1SBH136060R2144 0.37
A1 13 23 33 43 51 61 71 81
NO NO NO NO NC NC NC NC 48...130 NFZB44ERT-22 1SBH136060R2244 0.37
100...250 NFZB44ERT-23 1SBH136060R2344 0.37
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82 250…500 NFB44ERT-14 1SBH137060R1444 0.37
24...60 NFZB62ERT-21 1SBH136060R2162 0.37
A1 13 23 33 43 53 61 71 83
NO NO NO NO NO NC NC NO 48...130 NFZB62ERT-22 1SBH136060R2262 0.37
100...250 NFZB62ERT-23 1SBH136060R2362 0.37
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84 250…500 NFB62ERT-14 1SBH137060R1462 0.37
24...60 NFZB80ERT-21 1SBH136060R2180 0.37
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO 48...130 NFZB80ERT-22 1SBH136060R2280 0.37
100...250 NFZB80ERT-23 1SBH136060R2380 0.37
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84 250…500 NFB80ERT-14 1SBH137060R1480 0.37
Main dimensions mm, inches
77 3.03"
35 1.38" 110.5 4.35"
45 1.77" 71 2.80" 2 x
ø 4.2 0.17" 45 1.77" 71 2.80" 10 0.39" 35 1.38"
5.5 0.22" M4 8-32 UNC 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20" 1SBC100102S0201 - Rev. A 5 0.20"
10 0.39"
5 0.20"
NF(Z)B22ERT, NF(Z)B31ERT, NF(Z)B40ERT NF(Z)B44ERT, NF(Z)B62ERT, NF(Z)B80ERT 5 0.20"
