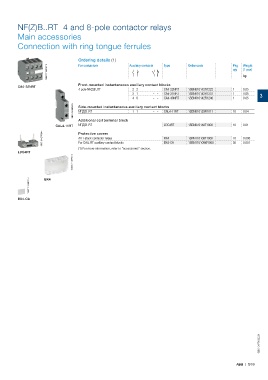

NF(Z)B..RT 4 and 8-pole contactor relays

Main accessories
Connection with ring tongue ferrules

Ordering details (1)
1SBC101430F0014 For contactors Auxiliary contacts Type Order code Pkg Weight
qty
(1 pce)
kg
Front-mounted instantaneous auxiliary contact blocks
CA4-22NRT
4-pole NF(Z)B..RT 2 2 – – CA4-22NRT 1SBN010142R1222 1 0.05
3 1 – – CA4-31NRT 1SBN010142R1231 1 0.05 3
4 0 – – CA4-40NRT 1SBN010142R1240 1 0.05
1SBC101426F0014 Side-mounted instantaneous auxiliary contact blocks 1SBN010129R1011 10 0.04
– –
CAL4-11RT
1 1
NF(Z)B..RT
Additional coil terminal block
CAL4-11RT NF(Z)B..RT LDC4RT 1SBN070158T1000 10 0.01
1SBC101427F0014 Protective covers BX4 1SBN110108T1000 10 0.006
All 1-stack contactor relays
1SBN110109W1000
50
0.001
BX4-CA
For CA4..RT auxiliary contact blocks
(1) For more information, refer to "accessories" section.
LDC4RT
1SBC101136F0014

1SBC101138F0014 BX4

BX4-CA

1SBC101771S0201

ABB | 3/99
