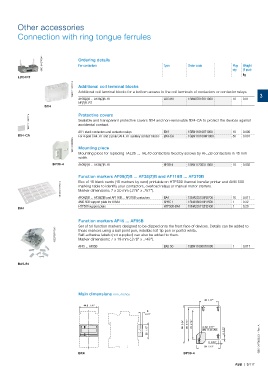

Other accessories

Connection with ring tongue ferrules

1SBC101427F0014 Ordering details Type Order code Pkg Weight

For contactors
(1 pce)
qty
kg
LDC4RT
1SBC101136F0014 Additional coil terminal blocks
Additional coil terminal blocks for a bottom access to the coil terminals of contactors or contactor relays.
AF09(Z)B ... AF38(Z)B..RT LDC4RT 1SBN070158T1000 10 0.01 3
NF(Z)B..RT
BX4

1SBC101138F0014 Protective covers
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against
accidental contact.
All 1-stack contactors and contactor relays BX4 1SBN110108T1000 10 0.006
BX4-CA For 4-pole CA4..RT and 2-pole CAT4..RT auxiliary contact blocks BX4-CA 1SBN110109W1000 50 0.001
1SBC101383F0014 Mounting piece

Mounting piece for replacing TAL26 ... TAL40 contactors fixed by screws by AF..ZB contactors in 45 mm
width.
BP38-4 AF09(Z)B ... AF38(Z)B..RT BP38-4 1SBN112303T1000 10 0.003

Function markers AF09(Z)B ... AF38(Z)B and AF116B ... AF370B
Box of 16 blank cards (16 markers by card) printable on HTP500 thermal transfer printer and AMS 500
1SNC160101F0014 marking table to identify your contactors, overload relays or manual motor starters.
Marker dimensions: 7 x 20 mm (.276" x .787").
AF09(Z)B ... AF38(Z)B and AF116B ... AF370B contactors
1SNA360010R1500
SPRC 1
1
AMS 500 support plate for 8 BA4 BA4 1SNA235156R2700 16 0.011
0.22
HTP500 support plate HTP500-BA4 1SNA235712R2400 1 0.29
BA4
Function markers AF45 ... AF95B
Set of 50 function markers designed to be clipped onto the front face of devices. Details can be added to
1SBC575874F0301 these markers using a ball point pen, indelible felt-tip pen or pentel white.
Self-adhesive labels (not supplied) can also be added to them.
Marker dimensions: 7 x 19 mm (.276" x .748").
AF45 ... AF95B BA5-50 1SBN110000R1000 1 0.017

BA5-50

Main dimensions mm, inches
45 1.77"
44.8 1.76"

6
0.24"
90 3.54" 80 3.15" 70 2.76" ø 4.2 0.17"
28 1.10" M4 8-32 UNC 5 0.20"

5 0.20" 1SBC101774S0201 - Rev. A
54 2.13"
BX4 BP38-4
