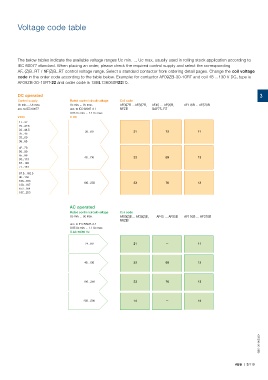

Page 299 - contactors_motor_protection_for_rolling_stock_application

Voltage code table

The below tables indicate the available voltage ranges Uc min. ... Uc max. usually used in rolling stock application according to
IEC 60077 standard. When placing an order, please check the required control supply and select the corresponding
AF..(Z)B..RT / NF(Z)B..RT control voltage range. Select a standard contactor from ordering detail pages. Change the coil voltage
code in the order code according to the table below. Example: for contactor AF09ZB-30-10RT and coil 48 ...130 V DC, type is
AF09ZB-30-10RT-22 and order code is 1SBL136060R2210.

DC operated 3
Control supply Rated control circuit voltage Coil code
Uc min. ... Uc max. Uc min. ... Uc max. AF09ZB ...AF38ZB, AF45 ... AF95B, AF116B ... AF370B
acc. to IEC 60077 acc. to IEC 60947-4-1 NFZB GAF75..RT
0.85 Uc min. ... 1.1 Uc max.
V DC V DC
17...32
23...42.5
23...44.5 20...60 21 72 11
25...45
33...60
36...65
42...78
50...90
55...96
63...113 48...130 22 69 12
67...120
77...143
87.5...162.5
90...150
105...183 100...250 23 70 13
120...167
152...264
187...253

AC operated
Rated control circuit voltage Coil code
Uc min. ... Uc max. AF09(Z)B ... AF38(Z)B, AF45 ... AF95B AF116B ... AF370B
NF(Z)B
acc. to IEC 60947-4-1
0.85 Uc min. ... 1.1 Uc max.
V AC 50/60 Hz

24...60 21 — 11

48...130 22 69 12

100...250 23 70 13

250...500 14 — 14

1SBC100106S0201 1SBC100106S0201

ABB | 3/119
