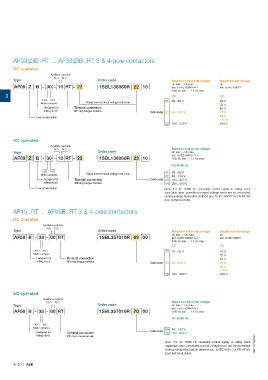

AF09(Z)B..RT ... AF38(Z)B..RT 3 & 4-pole contactors
DC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage Supply control voltage
AF09 Z B - 30 - 10 RT - 22 1SBL136060R 22 10 Uc min. ... Uc max. Uc
acc. to IEC 60947-4-1
acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
3 DC DC
N.O. N.C. 21 20...60 V 24 V
Main contacts Rated control circuit voltage coil code 33 V
Designed for Terminal connection 48 V
rolling stock RT: ring tongue ferrules Coil code 22 48...130 V 72 V
Low consumption 96 V
110 V
23 100...250 V 220 V

AC operated
Auxiliary contacts
N.O. N.C. Rated control circuit voltage
Type Order code Uc min. ... Uc max.
acc. to IEC 60947-4-1
AF09 Z B - 30 - 10 RT - 23 1SBL136060R 23 10 0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
N.O. N.C. 21 24...60 V
Main contacts Rated control circuit voltage coil code 22 48...130 V
Designed for Terminal connection Coil code 23 100...250 V
rolling stock RT: ring tongue ferrules 14 250...500 V
Low consumption Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
application. Max. permitted control voltage must not be exceeded
during voltage fluctuation defined acc. to IEC 60077 or EN 50155
(see technical data).

AF45..RT ... AF95B..RT 3 & 4-pole contactors
DC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage Supply control voltage
Uc min. ... Uc max. Uc
AF50 B - 30 - 00 RT 1SBL357010R 69 00 acc. to IEC 60947-4-1 acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
DC DC
N.O. N.C. 72 20...60 V 24 V
Main contacts 33 V
Designed for Terminal connection 48 V
rolling stock RT: ring tongue ferrules Coil code 69 48...130 V 72 V
96 V
110 V
70 100...250 V 220 V

AC operated
Auxiliary contacts
N.O. N.C. Rated control circuit voltage
Type Order code Uc min. ... Uc max.
acc. to IEC 60947-4-1
AF50 B - 30 - 00 RT 1SBL357010R 70 00 0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
N.O. N.C.
Main contacts 69 48...130 V
Coil code
Designed for Terminal connection 70 100...250 V
rolling stock RT: ring tongue ferrules
Note: For AC 50/60 Hz sinusoïdal control supply in rolling stock
application. Max. permitted control voltage must not be exceeded 1SBC100106S0201
during voltage fluctuation defined acc. to IEC 60077 or EN 50155
(see technical data).

3/120 | ABB
