3/60 ABB MOTOR PROTECTION AND CONTROL

—

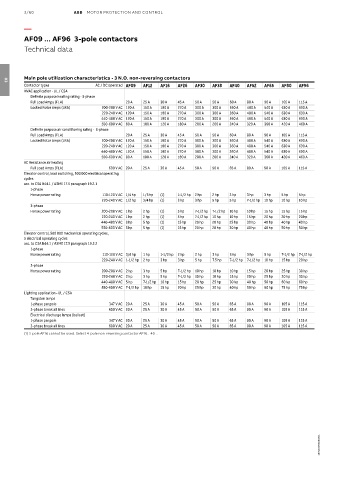

AF09 ... AF96 3-pole contactors
Technical data

Main pole utilization characteristics - 3 N.O. non-reversing contactors
03
Contactor types AC / DC operated AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96
HVAC application - UL / CSA
Definite purpose heating rating - 3-phase
Full Load Amps (FLA) 20 A 25 A 30 A 45 A 50 A 50 A 60 A 80 A 90 A 105 A 115 A
Locked Rotor Amps (LRA) 200-208 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
220-240 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
440-480 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
550-600 V AC 80 A 100 A 120 A 180 A 200 A 200 A 240 A 320 A 360 A 420 A 460 A
Definite purpose air conditioning rating - 3-phase
Full Load Amps (FLA) 20 A 25 A 30 A 45 A 50 A 50 A 60 A 80 A 90 A 105 A 115 A
Locked Rotor Amps (LRA) 200-208 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
220-240 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
440-480 V AC 120 A 150 A 180 A 270 A 300 A 300 A 360 A 480 A 540 A 630 A 690 A
550-600 V AC 80 A 100 A 120 A 180 A 200 A 200 A 240 A 320 A 360 A 420 A 460 A
AC Resistance air heating
Full Load Amps (FLA) 600 V AC 20 A 25 A 30 A 45 A 50 A 50 A 65 A 80 A 90 A 105 A 115 A
Elevator control, load switching, 500 000 electrical operating
cycles
acc. to CSA B44.1 / ASME 17.5 paragraph 19.2.1
1-phase
Horse power rating 110-120 V AC 1/4 hp 1/3 hp (1) 1-1/2 hp 2 hp 2 hp 3 hp 3 hp 3 hp 5 hp 5 hp
220-240 V AC 1/2 hp 3/4 hp (1) 3 hp 3 hp 5 hp 5 hp 7-1/2 hp 10 hp 10 hp 10 hp
3-phase
Horse power rating 200-208 V AC 1 hp 2 hp (1) 5 hp 7-1/2 hp 7-1/2 hp 10 hp 10 hp 15 hp 15 hp 15 hp
220-240 V AC 1 hp 2 hp (1) 5 hp 7-1/2 hp 10 hp 10 hp 15 hp 20 hp 20 hp 20 hp
440-480 V AC 3 hp 5 hp (1) 15 hp 20 hp 20 hp 25 hp 30 hp 40 hp 40 hp 40 hp
550-600 V AC 3 hp 5 hp (1) 15 hp 20 hp 20 hp 30 hp 40 hp 40 hp 50 hp 50 hp
Elevator control, 500 000 mechanical operating cycles,
5 electrical operating cycles
acc. to CSA B44.1 / ASME 17.5 paragraph 19.2.2
1-phase
Horse power rating 110-120 V AC 3/4 hp 1 hp 1-1/2 hp 2 hp 2 hp 3 hp 3 hp 3 hp 5 hp 7-1/2 hp 7-1/2 hp
220-240 V AC 1-1/2 hp 2 hp 3 hp 3 hp 5 hp 7.5 hp 7-1/2 hp 7-1/2 hp 10 hp 15 hp 20 hp
3-phase
Horse power rating 200-208 V AC 2 hp 3 hp 5 hp 7-1/2 hp 10 hp 10 hp 10 hp 15 hp 20 hp 25 hp 30 hp
220-240 V AC 2 hp 3 hp 5 hp 7-1/2 hp 10 hp 10 hp 15 hp 20 hp 25 hp 30 hp 30 hp
440-480 V AC 5 hp 7-1/2 hp 10 hp 15 hp 20 hp 25 hp 30 hp 40 hp 50 hp 60 hp 60 hp
550-600 V AC 7-1/2 hp 10 hp 15 hp 20 hp 25 hp 30 hp 40 hp 50 hp 60 hp 75 hp 75 hp
Lighting application - UL / CSA
Tungsten lamps
1-phase per pole 347 V AC 20 A 25 A 30 A 45 A 50 A 50 A 65 A 80 A 90 A 105 A 115 A
3-phase break all lines 600 V AC 20 A 25 A 30 A 45 A 50 A 50 A 65 A 80 A 90 A 105 A 115 A
Electrical discharge lamps (ballast)
1-phase per pole 347 V AC 20 A 25 A 30 A 45 A 50 A 50 A 65 A 80 A 90 A 105 A 115 A
3-phase break all lines 600 V AC 20 A 25 A 30 A 45 A 50 A 50 A 65 A 80 A 90 A 105 A 115 A
(1) 3-pole AF16 cannot be used. Select 4-pole non-reversing contactor AF16..-40-..

1SBC100065S0201
