ABB MOTOR PROTECTION AND CONTROL 3/65

—

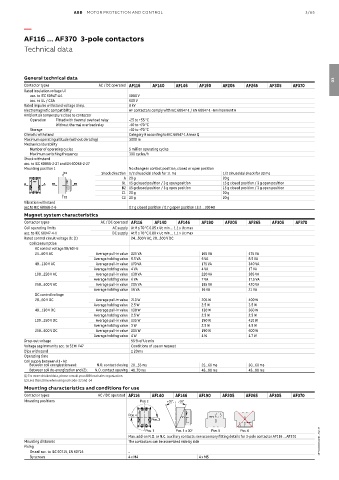

AF116 ... AF370 3-pole contactors
Technical data

General technical data 03
Contactor types AC / DC operated AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370
Rated insulation voltage Ui
acc. to IEC 60947-4-1 1000 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage Uimp. 8 kV
Electromagnetic compatibility AF contactors comply with IEC 60947-1 / EN 60947-1 - Environment A
Ambient air temperature close to contactor
Operation Fitted with thermal overload relay -25 to +55 °C
Without thermal overload relay -40 to +70 °C
Storage -40 to +70 °C
Climatic withstand Category B according to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 3000 m
Mechanical durability
Number of operating cycles 5 million operating cycles
Maximum switching frequency 300 cycles/h
Shock withstand
acc. to IEC 60068-2-27 and EN 60068-2-27
Mounting position 1 No change in contact position, closed or open position
C1 Shock direction 1/2 sinusoidal shock for 11 ms 1/2 sinusoidal shock for 30 ms
A 20 g 20 g
ABB B1 15 g closed position / 3 g open position 15 g closed position / 3 g open position
A A B1 B2
B2 15 g closed position / 3 g open position 15 g closed position / 3 g open position
C1 20 g 20 g
C2 C2 20 g 20 g
Vibration withstand
acc to IEC 60068-2-6 0.7 g closed position / 0.7 g open position 13.2…100 Hz
Magnet system characteristics
Contactor types AC / DC operated AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370
Coil operating limits AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
acc. to IEC 60947-4-1 DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
Rated control circuit voltage Uc (1) 24...500 V AC, 20...500 V DC
Coil consumption
AC control voltage 50/60 Hz
24...60 V AC Average pull-in value 225 VA 165 VA 475 VA
Average holding value 5.5 VA 6 VA 8.5 VA
48...130 V AC Average pull-in value 170 VA 175 VA 340 VA
Average holding value 4 VA 4 VA 17 VA
100...250 V AC Average pull-in value 130 VA 220 VA 385 VA
Average holding value 6 VA 7 VA 17.5 VA
250...500 V AC Average pull-in value 205 VA 185 VA 420 VA
Average holding value 16 VA 16 VA 21 VA
DC control voltage
20...60 V DC Average pull-in value 210 W 205 W 400 W
Average holding value 2.5 W 2.5 W 3.5 W
48...130 V DC Average pull-in value 130 W 130 W 360 W
Average holding value 2.5 W 2.5 W 2.5 W
100...250 V DC Average pull-in value 135 W 190 W 410 W
Average holding value 3 W 2.5 W 4.5 W
250...500 V DC Average pull-in value 205 W 190 W 600 W
Average holding value 4 W 4 W 4.7 W
Drop-out voltage 55 % of Uc min
Voltage sag immunity acc. to SEMI F47 Conditions of use on request
Dips withstand ≥ 20 ms
Operating time
Coil supply between A1 - A2
Between coil energization and: N.O. contact closing 20...55 ms 25...60 ms 30...60 ms
Between coil de-energization and (2): N.O. contact opening 40..70 ms 45...80 ms 45...80 ms
(1) For more detailed data, please consult your ABB local sales organization
(2) Less than 20ms when using coil code -33 and -34
Mounting characteristics and conditions for use
Contactor types AC / DC operated AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370
Mounting positions Pos. 2 +30° -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Max. add-on N.O. or N.C. auxiliary contacts: see accessory fitting details for 3-pole contactor AF116 ... AF370
Mounting distances The contactors can be assembled side by side 1SFC101112C0201 - Rev. B
Fixing 1SFC101112C0201
On rail acc. to IEC 60715, EN 60715 –
By screws 4 x M4 4 x M5
