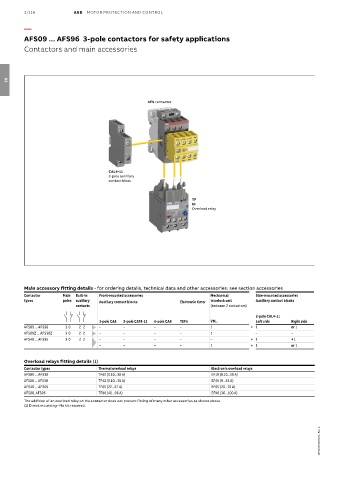

Page 190 - Motor protection and control Manual motor starters, contactors and overload relays

3/116 ABB MOTOR PROTECTION AND CONTROL

—

AFS09 ... AFS96 3-pole contactors for safety applications
Contactors and main accessories

03

AFS contactor

CAL4-11
2-pole auxiliary
contact block

TF
EF
Overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Built-in Front-mounted accessories Mechanical Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic timer interlock unit Auxiliary contact blocks
contacts (between 2 contactors)

2-pole CAL4-11
1-pole CA4 2-pole CAT4-11 4-pole CA4 TEF4 VM.. Left side Right side
AFS09 ... AFS38 3 0 2 2 – – – – 1 + 1 or 1
AFS09Z ... AFS38Z 3 0 2 2 – – – – 1 – –
AFS40 ... AFS96 3 0 2 2 – – – – – + 1 + 1
– – – – 1 + 1 or 1

Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AFS09 ... AFS38 TF42 (0.10...38 A) EF19 (0.10...19 A)
AFS26 ... AFS38 TF42 (0.10...38 A) EF45 (9...45 A)
AFS40 ... AFS65 TF65 (22...67 A) EF65 (20...70 A)
AFS80, AFS96 TF96 (40...96 A) EF96 (36...100 A)
The addition of an overload relay on the contactor does not prevent fitting of many other accessories as shown above.
(1) Direct mounting - No kit required.

1SBC100313S0201 - Rev. A
