ABB MOTOR PROTECTION AND CONTROL 3/121

—

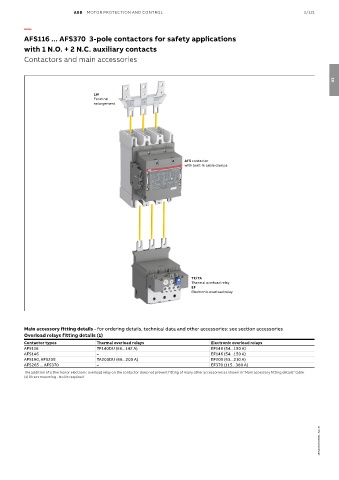

AFS116 ... AFS370 3-pole contactors for safety applications
with 1 N.O. + 2 N.C. auxiliary contacts
Contactors and main accessories

03

LW
Terminal
enlargement

AFS contactor
with built-in cable clamps

TF/TA
Thermal overload relay
EF
Electronic overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AFS116 TF140DU (66...142 A) EF146 (54...150 A)
AFS146 – EF146 (54...150 A)
AFS190, AFS205 TA200DU (66...200 A) EF205 (63...210 A)
AFS265 ... AFS370 – EF370 (115...380 A)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Direct mounting - No kit required.

1SBC100473S0201 - Rev. B
