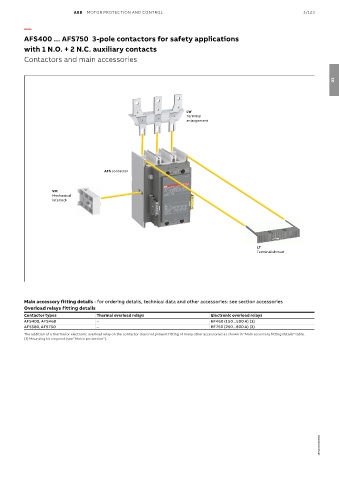

AFS400 ... AFS750 3-pole contactors for safety applications
with 1 N.O. + 2 N.C. auxiliary contacts
Contactors and main accessories

03

LW
Terminal
enlargement

AFS contactor

VM
Mechanical
interlock

LT
Terminal shroud

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Overload relays fitting details
Contactor types Thermal overload relays Electronic overload relays
AFS400, AFS460 – EF460 (150...500 A) (3)
AFS580, AFS750 – EF750 (250...800 A) (3)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(3) Mounting kit required (see "Motor protection").
