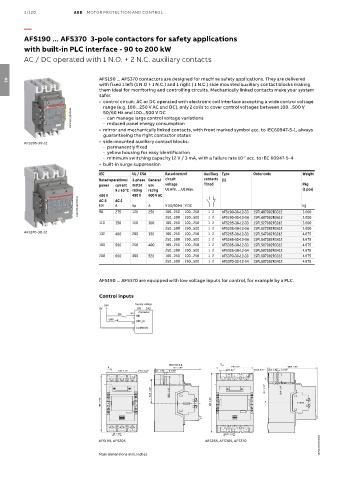

Page 194 - Motor protection and control Manual motor starters, contactors and overload relays

3/120 ABB MOTOR PROTECTION AND CONTROL

—

AFS190 ... AFS370 3-pole contactors for safety applications
with built-in PLC interface - 90 to 200 kW
AC / DC operated with 1 N.O. + 2 N.C. auxiliary contacts

AFS190 ... AFS370 contactors are designed for machine safety applications. They are delivered
with fixed 1 left (1 N.O + 1 N.C.) and 1 right ( 1 N.C.) side mounted auxiliary contact blocks making
03
them ideal for monitoring and controlling circuits. Mechanically linked contacts make your system
safer.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 2 coils to cover control voltages between 100...500 V
1SFC101233V0001 50/60 Hz and 100...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
• mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always
guaranteeing the right contactor status
AFS205-30-12 • side-mounted auxiliary contact blocks:
- permanently fixed
- yellow housing for easy identification
- minimum switching capacity 12 V / 3 mA, with a failure rate 10 acc. to IEC 60947-5-4
-7
• built-in surge suppression
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V AC-1 480 V 600 V AC
1SFC101230V0001 kW A 275 hp A 250 V 50/60 Hz V DC 1 2 AFS190-30-12-33 1SFL487082R3312 kg
AC-3
100...250
125
90
100...250
3.000
100...250
100...250
110 350 150 300 250...500 250...500 1 2 AFS190-30-12-34 1SFL487082R3412 3.000
1 2
1SFL527082R3312
3.000
AFS205-30-12-33
250...500 250...500 1 2 AFS205-30-12-34 1SFL527082R3412 3.000
AFS370-30-12 132 400 200 350 100...250 100...250 1 2 AFS265-30-12-33 1SFL547082R3312 4.675
250...500 250...500 1 2 AFS265-30-12-34 1SFL547082R3412 4.675
160 500 250 400 100...250 100...250 1 2 AFS305-30-12-33 1SFL587082R3312 4.675
250...500 250...500 1 2 AFS305-30-12-34 1SFL587082R3412 4.675
200 600 300 520 100...250 100...250 1 2 AFS370-30-12-33 1SFL607082R3312 4.675
250...500 250...500 1 2 AFS370-30-12-34 1SFL607082R3412 4.675
AFS190 ... AFS370 are equipped with low voltage inputs for control, for example by a PLC.
Control inputs

A
SECTION B-B
B 152 5.98" 140 5.51" 195.5 7.70"
105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20" 19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

35 1.38" 43.75 1.72"
1SBC100472S0201
AFS190, AFS205 AFS265, AFS305, AFS370
Main dimensions mm, inches
