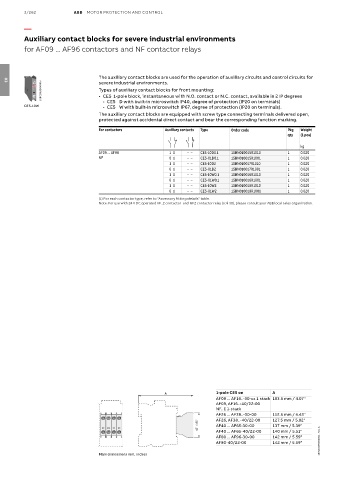

Auxiliary contact blocks for severe industrial environments
for AF09 ... AF96 contactors and NF contactor relays

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for
severe industrial environments.
1SBC101030V0014 Types of auxiliary contact blocks for front mounting:
03
• CE5 1-pole block, instantaneous with N.O. contact or N.C. contact, available in 2 IP degrees
CE5-10W - CE5 D with built-in microswitch IP40, degree of protection (IP20 on terminals)
- CE5 W with built-in microswitch IP67, degree of protection (IP20 on terminals).
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
protected against accidental direct contact and bear the corresponding function marking.
For contactors Auxiliary contacts Type Order code Pkg Weight
qty (1 pce)

kg
AF09 ... AF96 1 0 – – CE5-10D0.1 1SBN010015R1010 1 0.020
NF 0 1 – – CE5-01D0.1 1SBN010015R1001 1 0.020
1 0 – – CE5-10D2 1SBN010017R1010 1 0.020
0 1 – – CE5-01D2 1SBN010017R1001 1 0.020
1 0 – – CE5-10W0.1 1SBN010016R1010 1 0.020
0 1 – – CE5-01W0.1 1SBN010016R1001 1 0.020
1 0 – – CE5-10W2 1SBN010018R1010 1 0.020
0 1 – – CE5-01W2 1SBN010018R1001 1 0.020
(1) For each contactor type, refer to "Accessory fitting details" table.
Note: For use with 24 V DC operated AF..Z contactor and NFZ contactor relay (coil 30), please consult your ABB local sales organization.

A 1-pole CE5 on A
AF09 ... AF16..-30-xx 1 stack 103.5 mm / 4.07"
AF09, AF16..-40/22-00
NF..E 1-stack
AF26 ... AF38..-30-00 112.5 mm / 4.43"
47 1.85" AF26, AF38..-40/22-00 127.5 mm / 5.02"
137 mm / 5.39"
AF40 ... AF65-30-00
AF40 ... AF65-40/22-00 140 mm / 5.51"
AF80 ... AF96-30-00 142 mm / 5.59"
AF80-40/22-00 142 mm / 5.59" 1SBC101905S0201 - Rev. A
Main dimensions mm, inches
