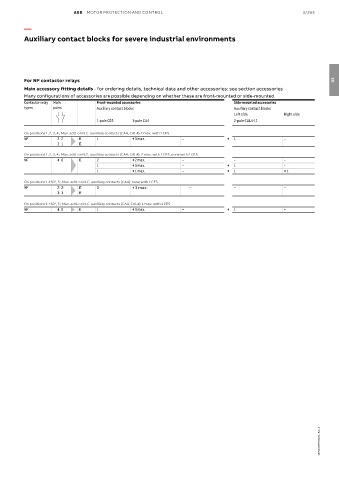

Page 339 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/265

—

Auxiliary contact blocks for severe industrial environments

For NF contactor relays 03
Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor relay Main Front-mounted accessories Side-mounted accessories
types poles Auxiliary contact blocks Auxiliary contact blocks
Left side Right side
1-pole CE5 1-pole CA4 2-pole CAL4-11

On positions 1, 2, 3, 4 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4): 1 max. with 1 CE5
NF 2 2 E 1 + 3 max. – + 1 –
3 1 E
On positions 1, 2, 3, 4 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4): 2 max. with 1 CE5, none with 2 CE5
NF 4 0 E 2 + 2 max. – – –
1 + 3 max. – + 1 –
1 + 1 max. – + 1 + 1
On positions 1 ±30°, 5 ; Max. add-on N.C. auxiliary contacts (CA4): none with 1 CE5
NF 2 2 E 1 + 3 max. – – –
3 1 E
On positions 1 ±30°, 5 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4): 1 max. with 1 CE5
NF 4 0 E 1 + 3 max. – + 1 –

1SBC101907S0201 - Rev. A
