3/286 ABB MOTOR PROTECTION AND CONTROL

—

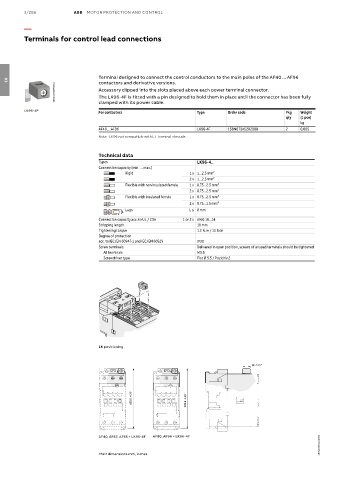

Terminals for control lead connections

Terminal designed to connect the control conductors to the main poles of the AF40 ... AF96
contactors and derivative versions.
1SBC100109V0014 Accessory clipped into the slots placed above each power terminal connector.
03
The LK96-4F is fitted with a pin designed to hold them in place until the connector has been fully

LK96-4F clamped with its power cable. Type Order code Pkg Weight
For contactors
qty (1 pce)
kg
AF40 ... AF96 LK96-4F 1SBN073452R2000 2 0.005
Note : LK96 not compatible with LT Terminal shrouds

Technical data
Types LK96-4..
Connection capacity (min. ... max.)
Rigid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...1.5 mm²
Lugs L ≤ 8 mm
l L
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...14
Stripping length 10 mm
Tightening torque 1.2 N.m / 11 lb.in
Degree of protection
acc. to IEC/EN 60947-1 and IEC/EN 60529 IP20
Screw terminals Delivered in open position, screws of unused terminals should be tightened
All terminals M3.5
Screwdriver type Flat Ø 5.5 / Pozidriv 2

LK positioning

19 0.75’’

125.8 4.95" 126.8 4.99"

AF40, AF52, AF65 + LK96-4F AF80, AF96 + LK96-4F
1SBC100541S0201

Main dimensions mm, inches
